MK 4VXP

Microphone capsule for close pickup

Properties

  • Cardioid, side-addressed for very close speech pickup (<10 cm)

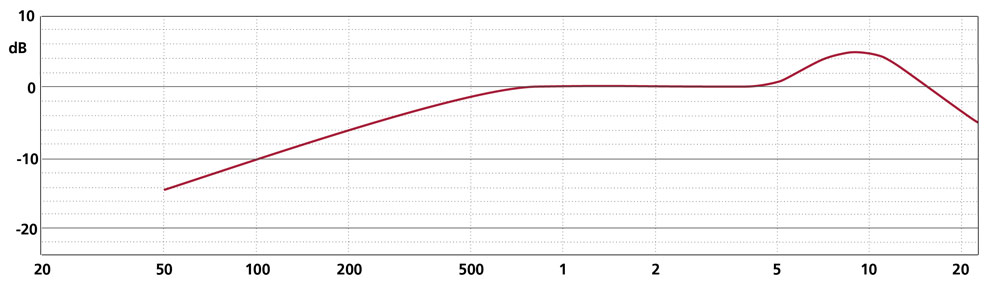

  • Low-frequency response rolloff (-10 dB at 100 Hz)
  • Polar diagram identical as the MK 4V
  • Preferred applications: close speech pickup, also available in the HSC 4VXP headset

Order number

  • No. 131705

Description

This cardioid capsule is designed for the very closest speech pickup, i.e. directly in front of the speaker’s mouth.

Its low-frequency rolloff is compensated by proximity effect. Thus it has (up to the point of its high-frequency emphasis) a flat frequency response for the speaker’s voice, while showing a rolloff at low frequencies for all sound that originates from a greater distance. As a result, background sounds are picked up less strongly than the person speaking.

Technical Specifications

Pickup pattern

Cardioid

Frequency range

 40 Hz - 19 kHz with CMC 6 / CMR,

40 Hz - 39 kHz with CMC 6xt

Sensitivity

-38,5 dB (V/Pa), 12 mV/Pa with CMC 6

Equivalent noise level (A-weighted)

14 dB with CMC 6

Equivalent noise level (CCIR)

24 dB with CMC 6

Signal-to-noise ratio (A-weighted)

80 dB with CMC 6

Maximum sound pressure level (THD < 0.5 %)

133 dB-SPL with CMC 6

Length

34 mm

Diameter

20 mm

Weight

18 g

Surface finish

matte gray (g) or custom color

Graphics
