MK 5

Microphone capsule

Features

  • mechanical switching between omnidirectional and cardioid patterns
  • true one-diaphragm system (unique on the microphone market)
  • pure pressure transducer in the omni setting; pressure gradient transducer in the cardioid setting
  • can be used in nearly any situation; often suggested as an initial acquisition. Popular with training institutes

Order number

  • No. 131019

Description

With the Schoeps MK 5, pattern switching is purely mechanical via a sliding lever on the side of the capsule. The result in each setting is like an independent microphone capsule with the same quality as the MK 2S / MK 4, and very similar (though not identical) frequency and polar response characteristics. In contrast to most dual-diaphragm microphones, the cardioid setting of the MK 5 maintains its directivity even at the lowest frequencies, and has high frequency response up to 20 kHz. In addition, the MK 5 has excellent low-frequency...

With the Schoeps MK 5, pattern switching is purely mechanical via a sliding lever on the side of the capsule. The result in each setting is like an independent microphone capsule with the same quality as the MK 2S / MK 4, and very similar (though not identical) frequency and polar response characteristics. In contrast to most dual-diaphragm microphones, the cardioid setting of the MK 5 maintains its directivity even at the lowest frequencies, and has high frequency response up to 20 kHz. In addition, the MK 5 has excellent low-frequency response in the omnidirectional setting along with the low sensitivity toward wind, vocal “popping” noise and solid-borne sound typical of pressure transducers.

moreless

Practice

The MK 5 is nearly an all-purpose capsule. It is what we recommend for those starting out with the Colette series, unless particular circumstances (such as the need for greater directivity or a bidirectional pattern) would indicate a different choice.

(Please note: The pattern selector should be definitely set to one position or the other; in-between settings will yield undefined results.)

Technical Specifications

MK 5 - Omni

Pickup pattern

Omnidirectional

Frequency range

20 Hz - 28 kHz
20 Hz - 43 kHz with CMC 6xt

Sensitivity

-38,0 dB (V/Pa), 12 mV/Pa

Equivalent noise level (A-weighted)

12 dB

Equivalent noise level (CCIR)

24 dB

Signal-to-noise ratio (A-weighted)

82 dB

Maximum sound pressure level (THD < 0.5 %)

132 dB-SPL with CMC 6
136 dB-SPL with CMC 1

MK 5 - Cardioid

Pickup pattern

Cardioid

Frequency range

40 Hz - 26 kHz with
40 Hz - 41 kHz with CMC 6xt

Sensitivity

-37 dB (V/Pa), 14 mV/Pa

Equivalent noise level (A-weighted)

13 dB

Equivalent noise level (CCIR)

23 dB with CMC 6

Signal-to-noise ratio (A-weighted)

81 dB

Maximum sound pressure level (THD < 0.5 %)

131 dB-SPL with CMC 6
135 dB-SPL with CMC 1

Mechanical Specifications

Length

27 mm

Diameter

20 mm

Weight

25 g

Surface finish

matte gray
custom color:
Chromagreen, Smoked Silver (looks like the classic Schoeps nickel)

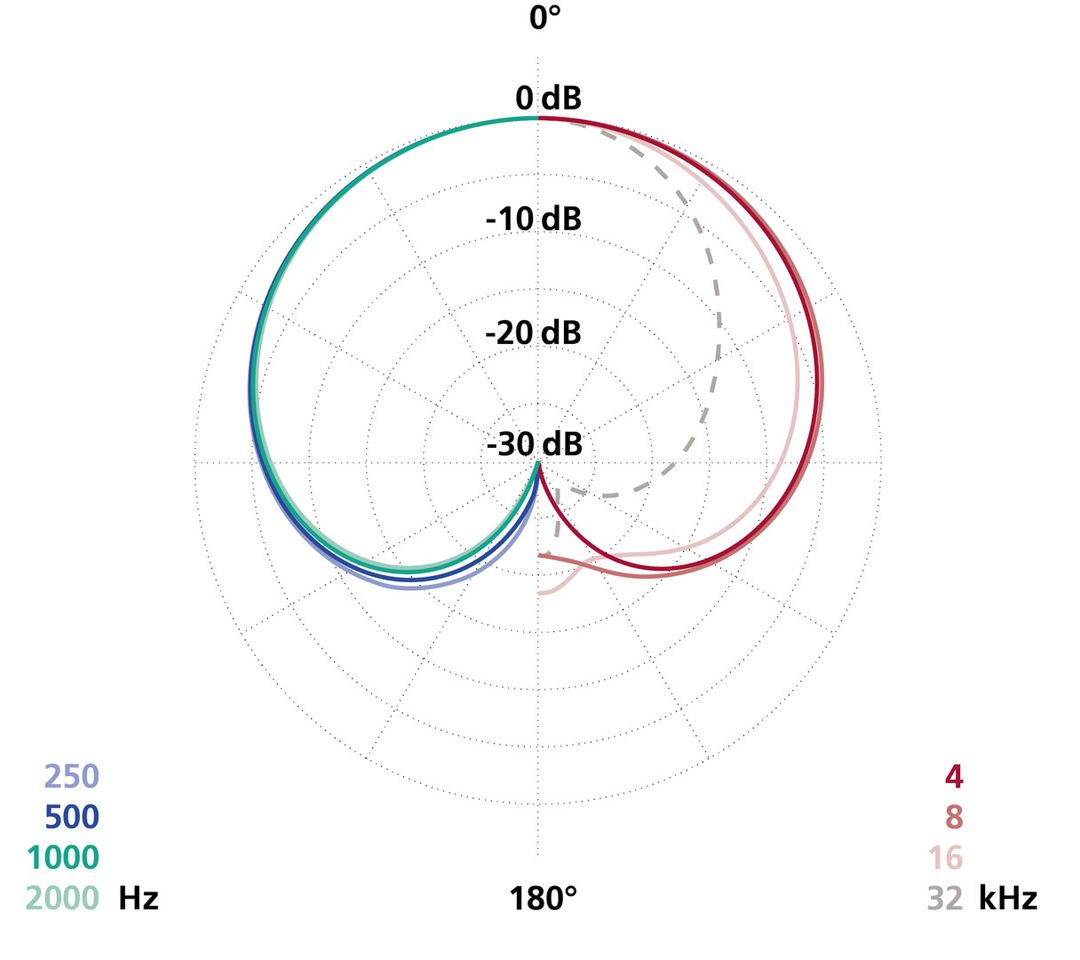

Graphics

Variants & Options

No. 191701 matching: Although our normal production tolerances are very close, we can deliver specially matched capsule pairs for a small extra charge.

No. 191102 custom color: Chromagreen, Smoked Silver (looks like the classic Schoeps nickel), other custom colors on request

No. 191201 custom engraving
