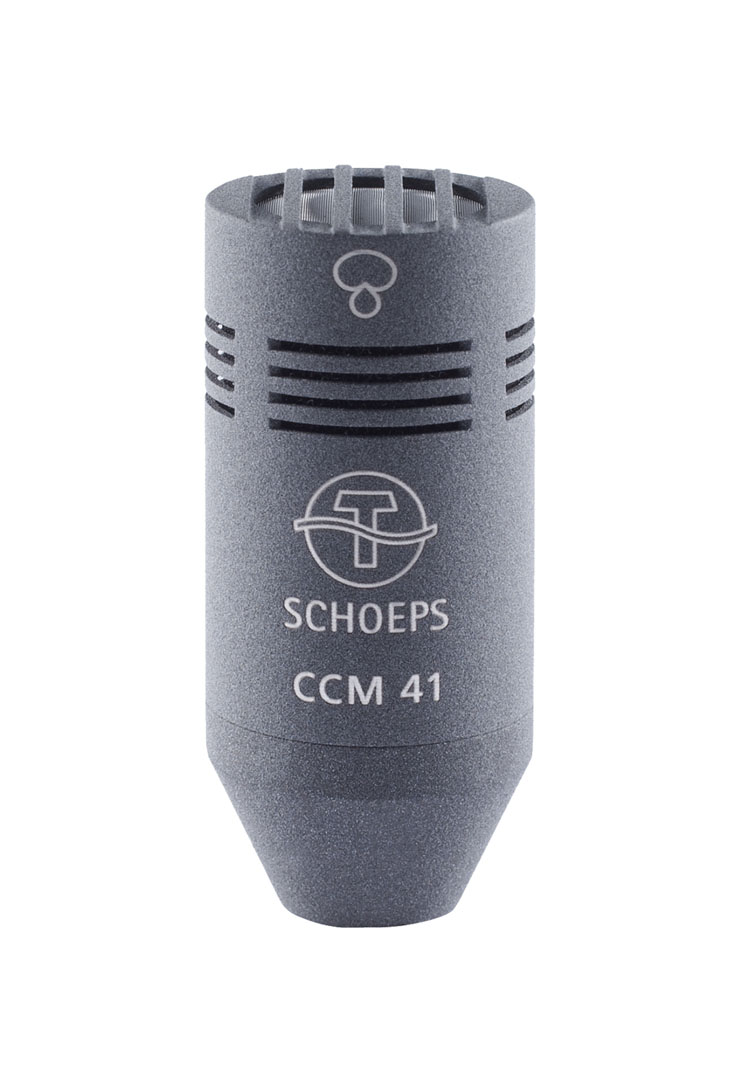

CCM 41

supercardioid compact MICROPHONE

Features

  • supercardioid with highly consistent directionality throughout its frequency range
  • for music and speech
  • high directivity, comparable to that of a short “shotgun“ microphone up through midrange frequencies
  • often preferred for use in film sound recording and as a spot microphone in orchestras

This microphone can also be ordered as a modular Colette microphone, where the CMC 1 L amplifier is combined with an MK microphone capsule. (CMC 1 L + MK 41)
This variant allows the capsule to be exchanged and has advantages in terms of electrical properties in combination with digital wireless transmitters.


Order number

  • No. 121017 CCM 41 L (standard Lemo version)
  • No. 121018 CCM 41 K (fixed cable version with XLR)

Description

The CCM 41 is strongly directional. Sound arriving from off axis is attenuated even more than with a cardioid. The pickup is “drier” and less susceptible to acoustic feedback than any other SCHOEPS microphone type (a loudspeaker should not be located directly along the rear axis of the microphone, however).

Its directivity is highly independent of frequency, so that even sounds arriving off axis and reverberant sound are registered without coloration. Consequently, even distant placement of the capsule produces a very natural sound pickup. This...

The CCM 41 is strongly directional. Sound arriving from off axis is attenuated even more than with a cardioid. The pickup is “drier” and less susceptible to acoustic feedback than any other SCHOEPS microphone type (a loudspeaker should not be located directly along the rear axis of the microphone, however).

Its directivity is highly independent of frequency, so that even sounds arriving off axis and reverberant sound are registered without coloration. Consequently, even distant placement of the capsule produces a very natural sound pickup. This is a real advantage over interference-tube “shotgun” microphones, whose directivity is very frequency-dependent – exceeding that of a supercardioid only at higher frequencies. Interference-tube microphones are notoriously sensitive to their position in a room, where the shifting patterns of reflections cause corresponding shifts in sound color.

moreless

Practice

The CCM 41 is a surprisingly effective, space-saving alternative to shotgun microphones – and being small, it can often be placed closer to the sound source. An M/S microphone arrangement can be set up at quite some distance from the sound source if an CCM 41 is used for the “M“ channel.

Technical Specifications

Frequency range

see corresponding capsule

Sensitivity

see corresponding capsule

Maximum sound pressure level (THD < 0.5 %)

136 dB-SPL (P48)
128 dB-SPL (P12)

Maximum output voltage

2,6 V (8,3 dbV) with 2 kΩ load

Low cut filter

20 Hz, 12 dB/Okt.

Output impedance

90 Ω @ 1 kHz

Maximum cable length

> 400m

SCHOEPS RFI Shield

No

Powering standard / Valid range

P48 / >40 V
P12 / >10 V

Current consumption

4 mA (P48)
3,6 mA (P12)

Common mode rejection ratio (at 1 kHz)

> 55 dB

Minimum recommended load impedance

2 kΩ

Output

Lemo (CCM-L) or XLR-3M (CCM-K),
analog, 1 channel

Length

46 mm (CCM-L)

Diameter

20 mm

Weight

45 g (CCM-L)

Surface finish

matte gray

Graphics

Downloads

CCM

Compact Condenser Microphones

User guides, manuals

en
Berliner Philharmonie

"Orchester aus der digitalen Kiste - Digital Concert Hall" pma, Januar 2013.

Press Articles

de
Berlin Philharmonic

"Berlin Philharmonic - The world famous concert hall has switched to Schoeps mics" by Zenon Schoepe, Resolution Magazine, March 2012.

Press Articles

en

Variants & Options

  • No. 191701 "Matching of two microphone capsules including certificate": Although our normal production tolerances are very close, we can deliver specially matched compact microphone pairs.
  • No. 191102 custom color: other custom colors on request
  • Each CCM microphone is available as a standard version "L" with a Lemo plug and as a version "K" with a permanently attached 5 m cable and XLR-3M connector.
