MK 22

Microphone capsule

Features

  • New directional pattern: Open Cardioid
  • Optimal combination of directionality (MK 4 cardioid) and warm sound characteristics (MK 21 wide cardioid)
  • Natural sound quality, due to highly consistent polar diagram across the frequency range

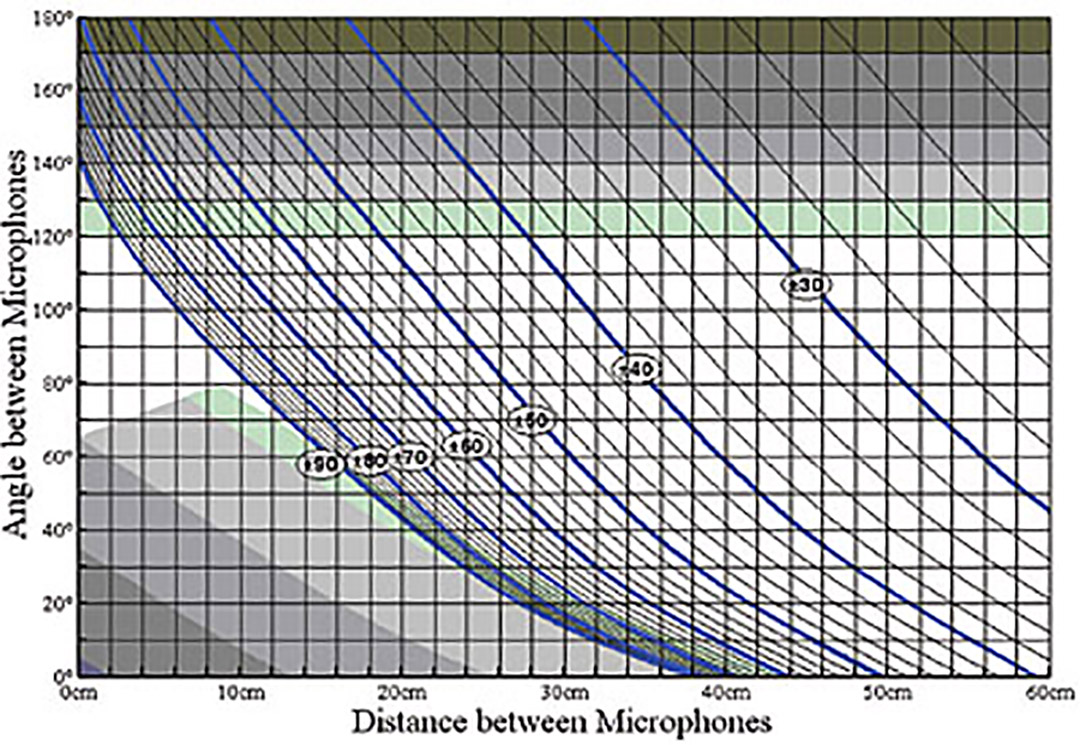

  • Popular for use as a spot or soloist's microphone, as the mid microphone for M/S, or as a main microphone pair e.g. at a spacing of 21 cm, angle +/- 55°

Order number

  • No. 131007

Description

The "Open Cardioid" pickup pattern was introduced by SCHOEPS in 2008. It lies between the classic cardioid and the wide cardioid, achieving both a fair amount of directivity and very natural sound quality. Many years' experience of professional recording engineers with the range of Schoeps cardioids has played a large role in the development process. Meanwhile the MK 22 has become a preferred soloist and spot microphone, thus becoming an alternative to the "classic" MK 4.

Technical Specifications

Pickup pattern

Open Cardioid

Frequency range

40 Hz - 28 kHz with CMC 6 / CMR

40 Hz - 42 kHz with CMC 6xt

Sensitivity

-36,5 dB (V/Pa), 15 mV/Pa with CMC 6

Equivalent noise level (A-weighted)

13 dB with CMC 6

Equivalent noise level (CCIR)

23 dB with CMC 6

Signal-to-noise ratio (A-weighted)

81 dB with CMC 6

Maximum sound pressure level (THD < 0.5 %)

130 dB-SPL with CMC 6

Length

22 mm

Diameter

20 mm

Weight

17 g

Surface finish

matte gray
custom color:
Chromagreen, Smoked Silver (looks like the classic Schoeps nickel)

Graphics

Downloads

MK 22

OpenCardioid

Product sheets

de | en
Reportage: José Carreras

"Gala-Vorstellung der Opern-Größe. José Carreras begeistert mit neuer Technik", Event Rookie, Februar 2014.

Press Articles

de

Variants & Options

No. 191701 matching: Although our normal production tolerances are very close, we can deliver specially matched capsule pairs for a small extra charge.
No. 191102 custom color: nickel, chromagreen, other custom colors on request
No. 191201 custom engraving

Recommended accessories
