MiniCMIT

Miniature Shotgun Microphone

Features

  • Offers the characteristics of a CMIT 5 in more compact form
  • Phantom Powering with P12 and P48
  • low current draw
  • Fixed 4th order low-cut filter at 70 Hz

Order number

  • No. 140103 standard blue
  • No. 140104 anthracite gray
  • No. 140106 chromagreen

Description

The shotgun microphone MiniCMIT offers the characteristics of a CMIT 5 in more compact form. The MiniCMIT, CMIT 5 and SuperCMIT (ch2) have identical frequency response curves. Furthermore, the MiniCMIT and CMIT 5 have circuitry with similar characteristics, such that the microphones can be interchanged without altering the sound.

The MiniCMIT is recommended for use with digital transmitters such as the Audio Ltd. A10-TX for two reasons:

  • The MiniCMIT can use P12, which is more power-efficient.
  • The MiniCMIT has the latest version of the...

The shotgun microphone MiniCMIT offers the characteristics of a CMIT 5 in more compact form. The MiniCMIT, CMIT 5 and SuperCMIT (ch2) have identical frequency response curves. Furthermore, the MiniCMIT and CMIT 5 have circuitry with similar characteristics, such that the microphones can be interchanged without altering the sound.

The MiniCMIT is recommended for use with digital transmitters such as the Audio Ltd. A10-TX for two reasons:

  • The MiniCMIT can use P12, which is more power-efficient.
  • The MiniCMIT has the latest version of the Schoeps RFI Shield, which has been specifically developed and tested for this type of application.



moreless

Videos

Practice

© Chris Watson

Technical Specifications

Pickup pattern

Supercardioid / lobe-shaped

Frequency range

60 Hz - 20 kHz

Sensitivity

-35 dB (V/Pa), 17 mV/Pa

Equivalent noise level (A-weighted)

14 dB

Equivalent noise level (CCIR)

24 dB

Signal-to-noise ratio (A-weighted)

80 dB

Maximum sound pressure level (THD < 0.5 %)

130 dB-SPL (P48)

115 dB-SPL (P12)

Maximum output voltage

1 V (0 dBV) with 2 kΩ load

Low cut filter

fixed, 70 Hz, 24 dB/oct.

Minimum recommended load impedance

2 kΩ

Output impedance

100 Ω

Maximum cable length

>100 m

SCHOEPS RFI Shield

Yes

Powering standard / Valid range

P48 / >24 V
P12 / >11 V

Current consumption

2.3 mA (P48)

Common mode rejection ratio (at 1 kHz)

> 55 dB

Output

XLR-3M, analog, 1 channel

Length

151 mm

Diameter

21 mm

Weight

78 g

Surface finish

blue
custom color:
anthracite gray, chromagreen

Product History

  • 2016: Generation C1: Product launch (Version numbers of the capsule part are congruent with CMIT 5 and SuperCMIT)
  • 2017: Generation C2: Polarization voltage generator now with higher frequency above 200 kHz
  • 2021: Generation D0: microphone is now humidity resistant (CMIT Upgrade: Older microphones can be upgraded with a Generation D capsule)

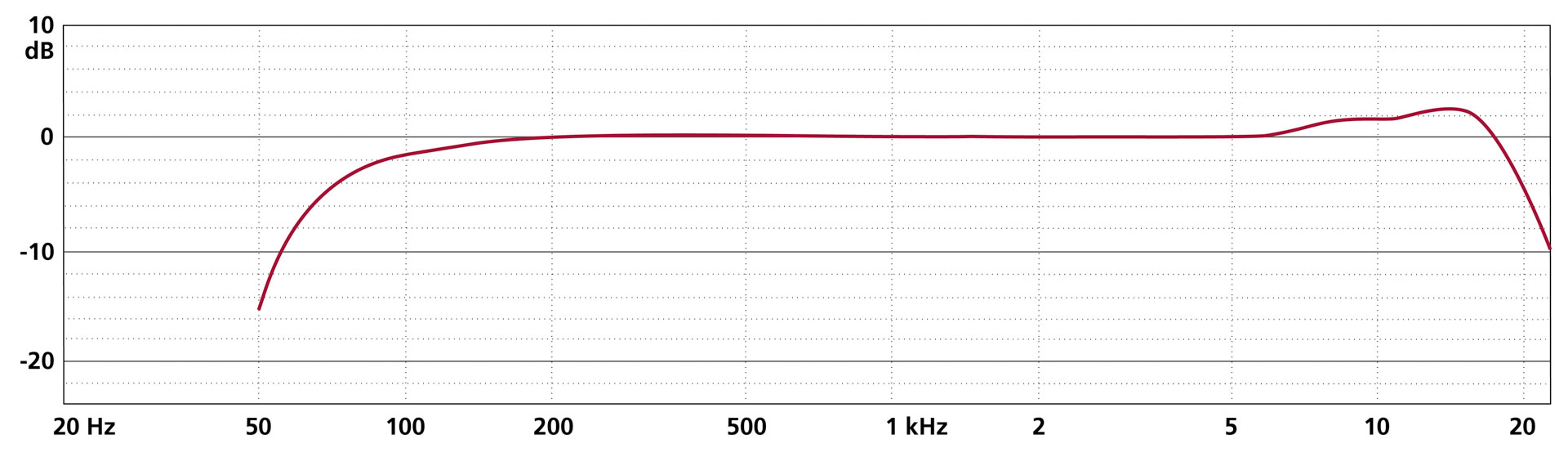

Graphics

Downloads

CMIT Shotgun Microphone Series

Product flyer CMIT Shotgun Microphone Series

Product sheets

de | en
Das Neue Blaue - Schoeps MiniCMIT Richtrohr

Studio Magazin, 2016

Reviews

de
Windshields & suspensions for the CMIT series

A selection of the available products for the CMIT series

User Brochures

en
Which suspension fits my SCHOEPS microphone?

updated 08.10.2020

User Brochures

en
Which windscreen fits my SCHOEPS microphone?

updated 15.06.2022

User Brochures

en
RFI Shield

Tech Note on the RFI Shielding (Protection from RF interferences) in SCHOEPS microphones

Hans Riekehof, 2017

Articles

en

Variants & Options

No. 191102 custom color: anthracite gray, chromagreen, other custom colors on request
No. 191201 custom engraving
