CCM 4XP

Compact Microphone for close pickup

Properties

  • cardioid pattern
  • for pickup of speech or music at close range (under 10 cm)
  • strong attenuation of low frequencies
  • Preferred applications: close speech pickup

Order number

  • No. 121707 CCM 4XP L (standard Lemo version)
  • No. 121708 CCM 4XP U (fixed cable version with XLR)

Description

This cardioid microphone is designed for the very closest speech pickup, i.e. directly in front of the speaker’s mouth.

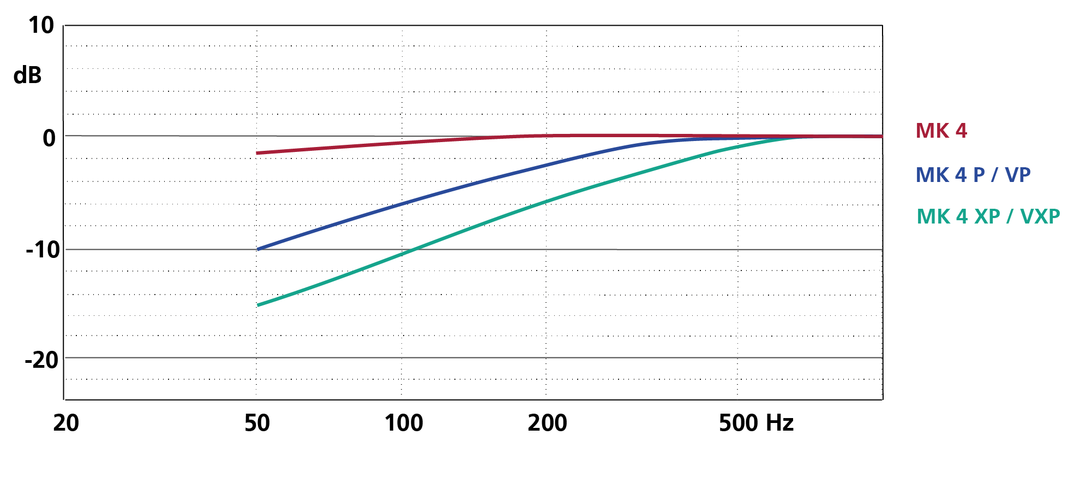

Its low-frequency rolloff is compensated by proximity effect. Thus it has (up to the point of its high-frequency emphasis) a flat frequency response for the speaker’s voice, while showing a rolloff at low frequencies for all sound that originates from a greater distance. As a result, background sounds are picked up less strongly than the person speaking.

Product History

  • 1994: Launch of the CCM, hybrid technology circuit. The capsule part is identical to the MK capsules from the beginning
  • 2016: better RF filter to protect from interferences
  • 2017: Polarization voltage generator now with higher frequency above 200 kHz due to downpitching in sound design applications.

Graphics

Downloads

CCM

Compact Condenser Microphones

User guides, manuals

en
Close Pickup Capsules

P-Series capsules & Headset

Product sheets

de | en

Variants & Options

  • No. 191701 "Matching of microphone capsules including certificate": Although our normal production tolerances are very close, we can deliver specially matched compact microphone pairs.
  • No. 191102 custom color: other custom colors on request
  • Each CCM microphone is available as a standard version "L" with a Lemo plug and as a version "U" with a permanently attached 5 m cable and XLR-3M connector.
