BL CCM 3

Description

This special version of the CCM 2XS L compact microphone is equipped with a flange enabling it to be built into the surface of a table or speaker's rostrum. This makes the microphone nearly invisible, and at the same time improves the sound quality by eliminating comb filter effects.

Practice

The BL CCM 3 is often used as a redundancy microphone in speaker tables.

Technical Specifications

Frequency range	see corresponding capsule
Sensitivity	see corresponding capsule
Maximum sound pressure level (THD < 0.5 %)	138 dB-SPL (P48) 130 dB-SPL (P12)
Maximum output voltage	2,6 V (8,3 dbV) with 2 kΩ load
Low cut filter	20 Hz, 12 dB/Okt.
Output impedance	90 Ω @ 1 kHz
Maximum cable length	> 400 m
SCHOEPS RFI Shield	No
Powering standard / Valid range	P48 / > 40 V P12 / > 10 V
Current consumption	4 mA (P48) 3,6 mA (P12)
Common mode rejection ratio (at 1 kHz)	> 55 dB
Minimum recommended load impedance	2 kΩ
Output	Lemo (CCM-L) or XLR-3M (CCM-K), analog, 1 channel
Length	46 mm (CCM-L)
Diameter	20 mm
Weight	33 g (CCM-L)
Surface finish	matte gray

Product History

• 1994: Launch of the CCM, hybrid technology circuit. The capsule part is identical to the MK capsules from the beginning
• 2016: better RF filter to protect from interferences
• 2017: Polarization voltage generator now with higher frequency above 200 kHz due to downpitching in sound design applications.

Downloads

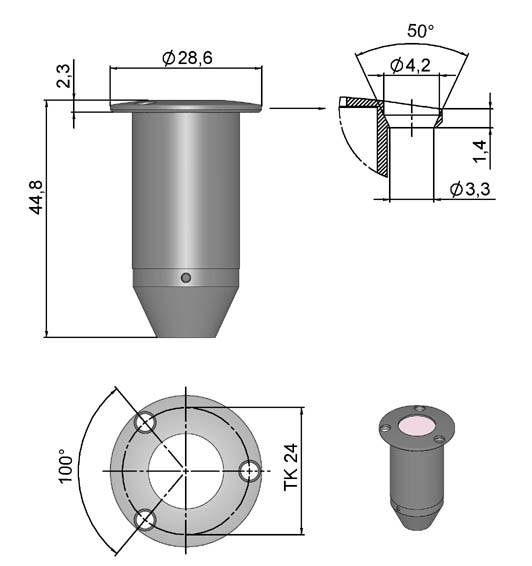

BL CCM 3 - dimensional drawing User guides, manuals
