CMC 1 K

Microphone Amplifier

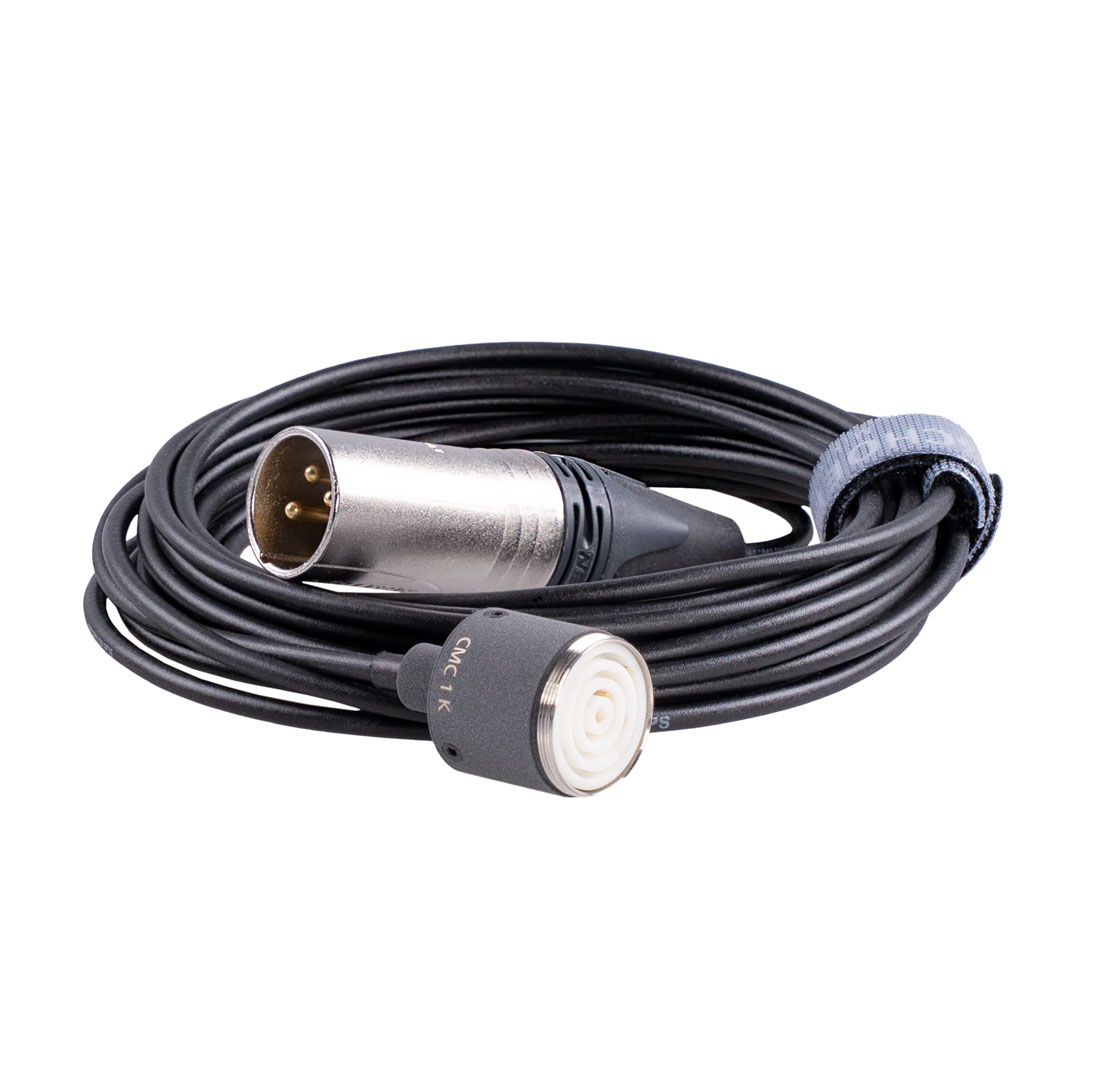

CMC 1 K (5m - XLR3M)

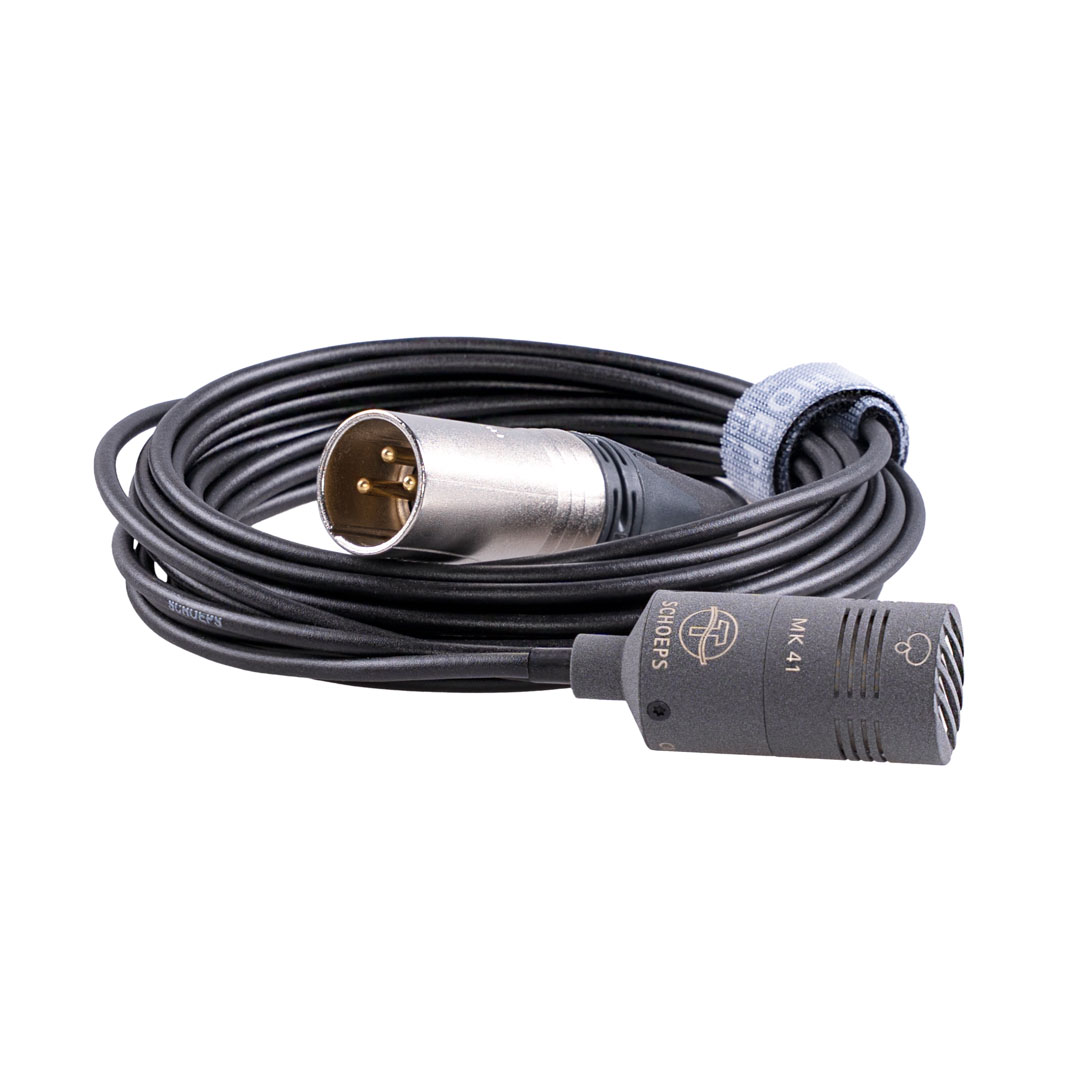

CMC 1 K (5m - XLR3M) with microphone capsule

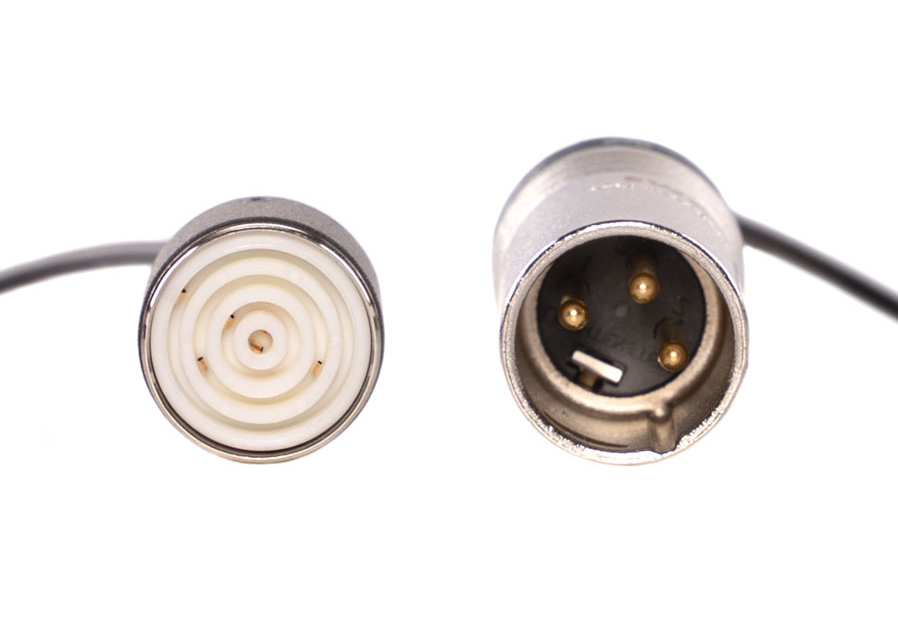

Input and output connectors

Features

  • complete alternative to the renowned CMC 6
  • fully compatible with all existing MK capsules and Colette active accessories such as the CUT 60 and RC tubes
  • version of the CMC 1 with permanently attached cables
  • shortest version of the CMC 1
  • available with different cable lengths and plugs, also for use with pocket transmitter with P12/48. Standard: 5 m (16.5 ft) cable with XLR3M
  • specified lengths may vary up to 5% (+/-)

Order number

  • No. 132013: 5 m Kabel, XLR3M
  • No. 132016: 0,5 m Kabel, Lemo-3pin Sound Devices
  • No. 132017: 0,5 m Kabel, Lemo-3pin Zaxcom
Find dealer

Description

The CMC 1 K is identical to the CMC 1 U, but instead of a built-in XLR connector, it has an attached cable.

Technical Specifications

Frequency range

20 Hz – 20 kHz

Maximum output voltage

1.8 V (5 dBV) at 1 kΩ load

Maximum sound pressure level (THD < 0.5 %)

135 dB-SPL (P48) with MK 4
131 dB-SPL (P12) with MK 4

Low cut filter

20 Hz, 12 dB/octave

Output impedance

50 Ω ± 1 Ω (8 Hz – 50 kHz)

Minimum recommended load impedance

1 kΩ

Common mode rejection ratio (at 1 kHz)

> 55 dB

Maximum cable length

> 400 m / 1300 ft

SCHOEPS RFI Shield

Yes

Powering standard / Valid range

P48 / 30 V – 52 V
P12 / 11 V – 13 V

Current consumption

2 mA (P48)
3 mA (P12)

Output

XLR-3M, analog, 1 channel

Length

29 mm / ~1.1"

Weight

~28 g / 1 oz (without cable)

Diameter

20 mm / 0.8"

Surface finish

matte gray
custom color:
Chromagreen, Smoked Silver (looks like the classic Schoeps nickel)

Product History

Downloads

Pin Configuration

for Sound Devices Lemo, Zaxcom Lemo and XLR

 -

Variants & Options

The CMC 1 K is available in the following variants:

  • #132013: Standard: 5 m (16.5 ft) cable with XLR-3M connector.
  • #132016: Option: 0.5 m (1.65 ft) cable with Lemo-3pin for Sound Devices A 10
  • #132017: Option: 0.5 m (1.65 ft) cable with Lemo-3pin for Zaxcom ZMT (Phantom)
  • Special versions with any cable length



The CMC 1 is available in five housing variants:

The CMC 1 K is available in the following variants:

  • #132013: Standard: 5 m (16.5 ft) cable with XLR-3M connector.
  • #132016: Option: 0.5 m (1.65 ft) cable with Lemo-3pin for Sound Devices A 10
  • #132017: Option: 0.5 m (1.65 ft) cable with Lemo-3pin for Zaxcom ZMT (Phantom)
  • Special versions with any cable length



The CMC 1 is available in five housing variants:

  • CMC 1 U: output connector XLR3M
  • CMC 1 L: output connector Lemo
  • CMC 1 K: fixed attached cable
  • CMC 1 KV: laterally outgoing cable
  • CMC 1 SO: fixed gooseneck and Lemo3pin output for pocket transmitter

No. 191102 custom color: Chromagreen, Smoked Silver (looks like the classic Schoeps nickel), other custom colors on request

No. 191201 custom engraving
