CMC 1 L

Microphone Amplifier

Features

  • Variant of the CMC 1 U with miniature Lemo output connector
  • K 5 LU (5 m cable with XLR-3M plug) and SGC stand adapter are included
  • Fully equal alternative to the well-known CMC 6
  • Compatible with all available MK capsules and active Colette accessories, e.g. CUT 60 or RC
  • Compatible with all accessories of the CCM series, e.g. TR L oder STA
  • Recommended accessories for boom use are the same as for CCM microphones, e.g. MINIX CCM LU or Rycote INV-5.

Order number

  • No. 132012

Description

The CMC 1 is our new, small Colette microphone amplifier, about one-third the length and 53% lighter than the CMC 6. It is compatible with all components of the Colette system and can be used in place of the CMC 6 without compromise, for all applications in which the size and weight of the microphone play a role.

At SCHOEPS, “uncompromising miniaturization” means that the electrical characteristics of the CMC 1 are equal to, or even better than, those of the CMC 6. Through modern electronic design, these outstanding electrical properties have...

The CMC 1 is our new, small Colette microphone amplifier, about one-third the length and 53% lighter than the CMC 6. It is compatible with all components of the Colette system and can be used in place of the CMC 6 without compromise, for all applications in which the size and weight of the microphone play a role.

At SCHOEPS, “uncompromising miniaturization” means that the electrical characteristics of the CMC 1 are equal to, or even better than, those of the CMC 6. Through modern electronic design, these outstanding electrical properties have been achieved:

  • high maximum SPL: 135 dB-SPL with the MK 4 (0.5% THD or less)
  • very low current consumption: 2.0 mA at 48 Volts
  • operates on 48 V or 12 V phantom power, reliable operation even if powering is somewhat marginal
  • very high immunity from RF interference with the SCHOEPS RFI Shield; high immunity to cable-induced hum and other interference (field tested with Audio Limited A 10, etc.)
  • flat frequency response
  • very low distortion
  • constant output impedance across the audio frequency range
  • balanced, direct-coupled, class-A output circuit
  • output is filtered in the ultrasonic range to prevent interference, e.g. from camera autofocus

A complete Colette-series microphone consists of an MK capsule and a CMC amplifer. All capsules and active accessories of the Colette system are compatible with the CMC 1.

The CMC 1 works with standard 12-Volt or 48-Volt phantom powering. Power consumption is lower at 12 Volts--an advantage for battery-powered operation

moreless

Practice

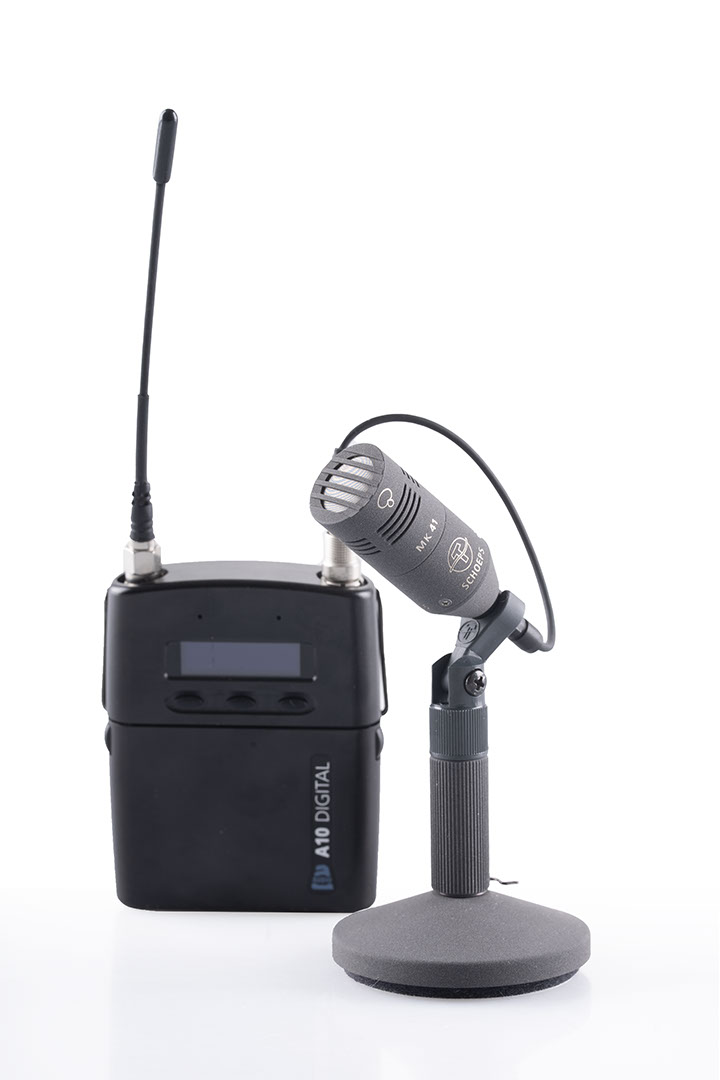

The optimized RF protection of the CMC 1 makes it the ideal microphone for use with transmitters such as the Audio Limited A 10. The use of the CMC 1 U and CMC 1 L versions on the A 10 has been successfully tested.

Find info on the pin assignement of the adapter cable between the two devices here.

Technical Specifications

Frequency range

20 Hz-20 kHz

Sensitivity

see corresponding capsule

Maximum output voltage

1,8 V (5 dbV) with 1kΩ load

Maximum sound pressure level (THD < 0.5 %)

135 dB-SPL (P48) with MK 4
131 dB-SPL (P12) with MK 4

Low cut filter

20 Hz, 12dB/oct

Output impedance

50 Ω +/- 1 Ω (8 Hz - 50 kHz)

Minimum recommended load impedance

1 kΩ

Common mode rejection ratio (at 1 kHz)

> 55 dB

Maximum cable length

> 400 m / ~1300 ft

SCHOEPS RFI Shield

Yes

Powering standard / Valid range

P48 / 30-52 V
P12 / 11-13 V

Current consumption

2mA (P48)
3 mA (P12)

Output

Lemo, analog, 1 channel

Length

25.5 mm / ~1 ''

Diameter

20 mm / 0.8''

Weight

28 g / ~1 oz

Surface finish

matte gray
custom color:
nickel, chromagreen

Product History

    • 2019: CMC 1 U introduced
    • 2020: CMC 1 L introduced
    • 2021: CMC 1 K to be introduced

Downloads

CMC 1

Product sheets

en
CN
RFI Shield

Tech Note on the RFI Shielding (Protection from RF interferences) in SCHOEPS microphones

Hans Riekehof, 2017

Articles

en
Which suspension fits my SCHOEPS microphone?

updated 08.10.2020

User Brochures

en
Which windscreen fits my SCHOEPS microphone?

updated 08.10.2020

User Brochures

en

Variants & Options

The CMC 1 is available in three variants:

  • CMC 1 U: XLR-3M output connector
  • CMC 1 L: Lemo output connector
  • CMC 1 K: permanently attached cable; standard version, 5 m with XLR-3M output plug (available starting early 2021). Other connectors or unterminated cable will be available on special order.
