MK 4XP

Microphone Capsule for close pickup

Features

  • Cardioid for very close speech pickup (<10 cm)

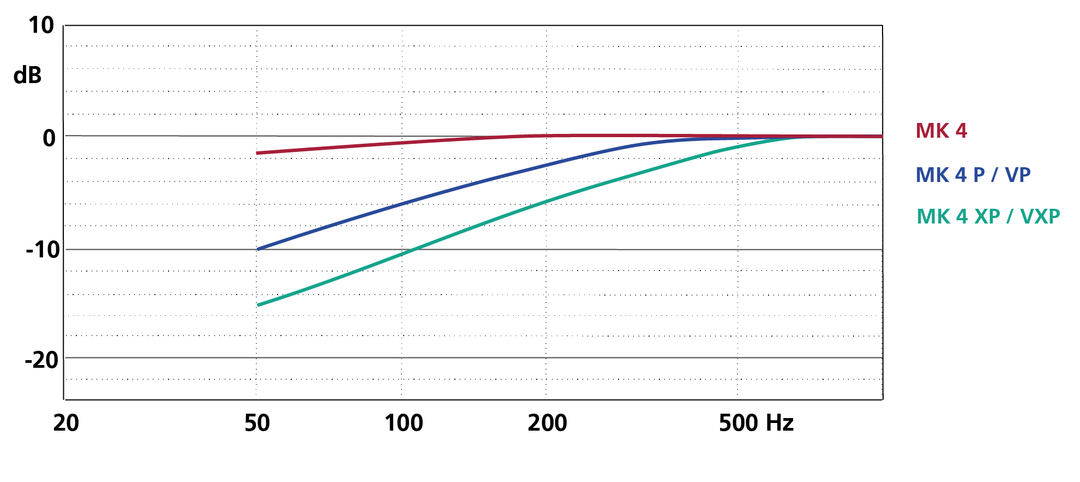

  • Low-frequency response rolloff (-10 dB at 100 Hz)
  • Polar diagram identical as the MK 4
  • Preferred applications: close speech pickup, public address systems

Order number

  • No. 131707

Description

This cardioid capsule is designed for the very closest speech pickup, i.e. directly in front of the speaker’s mouth.

Its low-frequency rolloff is compensated by proximity effect. Thus it has (up to the point of its high-frequency emphasis) a flat frequency response for the speaker’s voice, while showing a rolloff at low frequencies for all sound that originates from a greater distance. As a result, background sounds are picked up less strongly than the person speaking.

Sample Player

Your browser is outdated. Please update to the latest version of your browser to use the sample player.

Technical Specifications

Pickup pattern

Cardioid

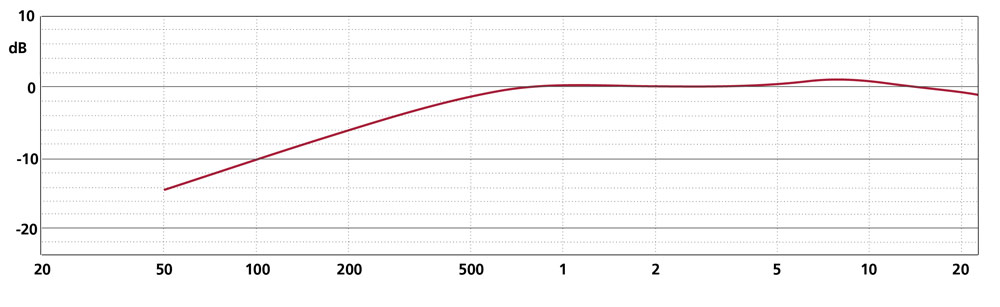

Frequency range

40 Hz - 26 kHz with CMC 6 / CMR,

40 Hz - 42 kHz with CMC 6xt

Sensitivity

-37.5 dB (V/Pa), 13 mV/Pa with CMC 6

Equivalent noise level (A-weighted)

13 dB with CMC 6

Equivalent noise level (CCIR)

23 dB with CMC 6

Signal-to-noise ratio (A-weighted)

81 dB with CMC 6

Maximum sound pressure level (THD < 0.5 %)

132 dB-SPL with CMC 6

Length

22 mm

Diameter

20 mm

Weight

17 g

Surface finish

matte gray
custom color:
nickel, chromagreen

Graphics

Downloads

Close Pickup Capsules

P-Series capsules & Headset

Product sheets

de | en

Variants & Options

No. 191102 custom color: nickel, chromagreen, other custom colors on request
No. 191201 custom engraving
