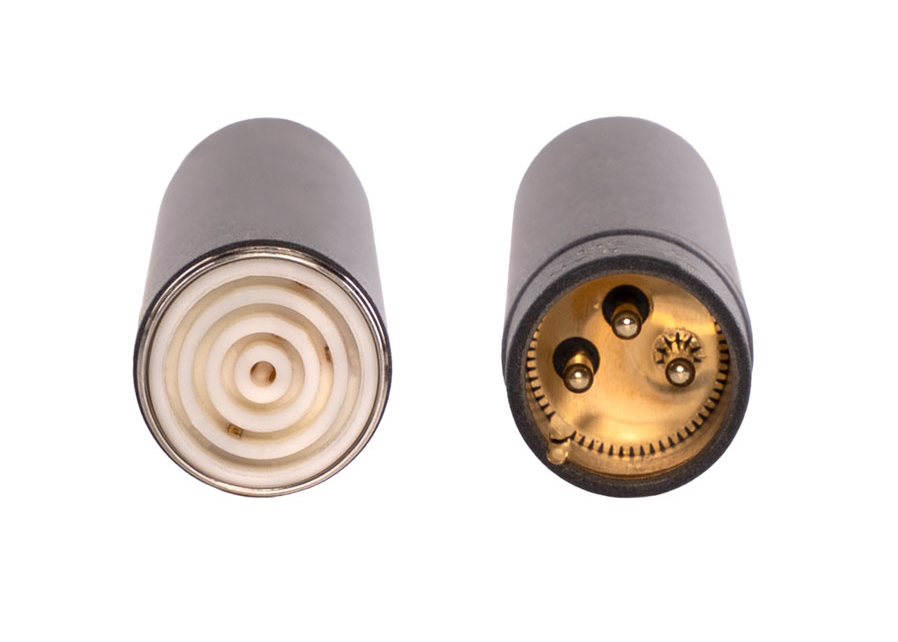

CMC 6xt

Mikrofonverstärker HiRes

Features

  • The CMC 6xt is the HiRes version of the CMC 6.
  • Using this amplifier, the frequency range of all axially-addressed capsules (MK 2 H/S, 21, 22, 4, 41, 5) can be extended up to 40 kHz
  • Especially useful when recording with a high sample rate, particularly with the intent to slow down the recording and reduce its pitch by one or more octaves at a later point (e.g. for sound design)

Order number

  • No. 132007

Description

The CMC 6xt extends the frequency response of the MK capsules up to 40 kHz.

Attention was paid to a low self-noise above 20 kHz. This maintains a high level of dynamics when recording at high sampling rates. Thus, the often very small signal above 20kHz is not covered and the noise is still low even after the down pitching.

Practice

Hans Riekehof about the noise level above 20 kHz. Section: 22:13 - 26:00

Technical Specifications

Frequency range

20 Hz - 60 kHz

Sensitivity

see corresponding capsule (same as CMC 6)

Maximum output voltage

1 V (0 dBV) with 1 kΩ load

Low cut filter

20 Hz, 12 dB/oct.

Minimum recommended load impedance

1 kΩ

Output impedance

42 Ω

Maximum cable length

> 400 m

SCHOEPS RFI Shield

Yes

Powering standard / Valid range

P48 / >20 V

P12 / >10 V

Current consumption

4 mA (P48)

8 mA (P12)

Common mode rejection ratio (at 1 kHz)

> 60 dB

Output

XLR-3M, analog, 1 channel

Length

116 mm

Diameter

20 mm

Weight

60 g

Surface finish

matte gray
custom color:
nickel, chromagreen

Variants & Options

No. 191102 custom color: nickel, chromagreen, other custom colors on request
No. 191201 custom engraving
