Pianissimo PIANI-3

Windshield set for Double M/S

Properties

  • CINELA basket-type windscreen with elastic suspension
  • for Double-M/S
  • without microphones

Order number

  • No. CIN-PIANI-3-CCM for Double MS with 2 * CCM 4 + CCM 8
  • No. CIN-PIANI-3-MiniCMIT for Double MS with MiniCMIT + CCM 4 + CCM 8

Description

The Pianissimo is a highly efficient windshield. Its special geometry leads to high acoustical transparency and thus extremely low coloration. At the same time the attenuation of wind noise is very high.

The Windscreen set is composed of:

  • Main cage with two-axis swivel
  • Black cloth cover for indoor recording and light wind
  • Selectable fur-like coverings for moderate / strong / extremely strong wind
  • Lightweight XLR7 output connector
  • Mono Suspension Module with elliptical isolators for 3 CCM microphones
  • Polycarbonate case





Practice

"Double M/S" is an improved version of the well-known M/S stereo recording technique. In addition to a front-facing cardioid or supercardioid microphone and a figure-8 "side" microphone, a rear-facing directional microphone is set up. The front- and rear-facing microphones share the signal of the figure-8 microphone so as to form two complete, back-to-back M/S systems. One M/S system then provides the three front channels (the center channel signal being provided directly by the mid microphone of the front system), while the other system...

"Double M/S" is an improved version of the well-known M/S stereo recording technique. In addition to a front-facing cardioid or supercardioid microphone and a figure-8 "side" microphone, a rear-facing directional microphone is set up. The front- and rear-facing microphones share the signal of the figure-8 microphone so as to form two complete, back-to-back M/S systems. One M/S system then provides the three front channels (the center channel signal being provided directly by the mid microphone of the front system), while the other system provides the two surround channels. An arrangement of this kind allows flexible processing of the stereo surround image width and post-production adjustment for both of the M/S pairs.

The SCHOEPS Double M/S plug-in enables customized, intuitive decoding of the three signals of the Double M/S system.

moreless

Downloads

Windshields & suspensions for the CMIT series

A selection of the available products for the CMIT series

Product sheets

en
List of all windshields

last update 23.10.2018

User Brochures

de | en

Variants & Options

  • No. CIN PIANI-3-CCM:
    for classic Double M/S with 2 * CCM 4 and a CCM 8 microphone, decodable with the SCHOEPS DMS plugin.
    When Dialog is recorded, a CCM 41 can also be used for the front M channel.

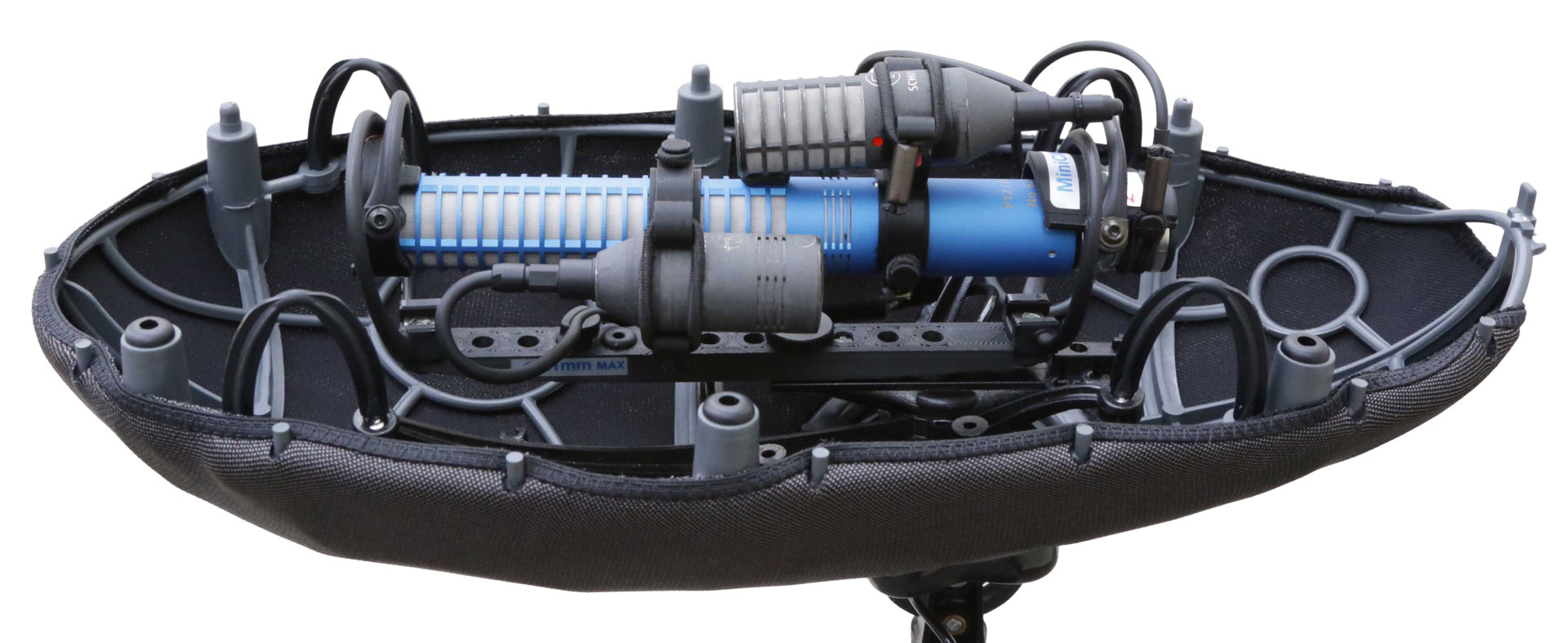

  • No. CIN PIANI-3-MiniCMIT:
    for Double M/S with the MiniCMIT shotgun, a CCM 4 and a CCM 8 microphone.
