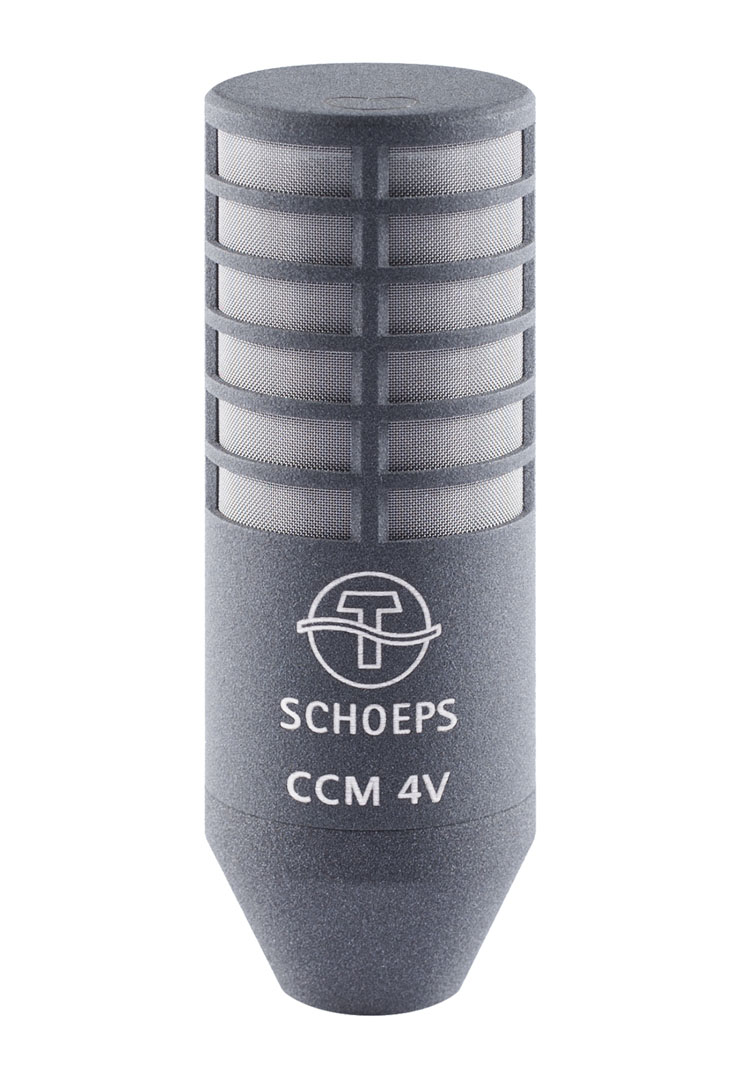

CCM 4V

Compact Microphone

Features

  • vertical (side-addressed) cardioid capsule
  • for a very wide range of recording applications
  • slight high-frequency emphasis
  • often preferred for singing or speaking voices, most instruments, spot microphones and stereo techniques such as XY, ORTF and MS.

This microphone can also be ordered as a modular Colette microphone, where the CMC 1 L amplifier is combined with an MK microphone capsule. (CMC 1 L + MK 4V)
This variant allows the capsule to be exchanged and has advantages in terms of electrical properties in combination with digital wireless transmitters.


Order number

  • No. 121103 CCM 4V L (standard Lemo version)
  • No. 121104 CCM 4V K (fixed cable version with XLR)

Description

The CCM 4V was created in answer to requests for a cardioid with its main axis along the side. In addition to its usefulness in the concert hall, this microphone type is of particular value in speech recording, since its slight emphasis around 10 kHz helps to improve intelligibility.

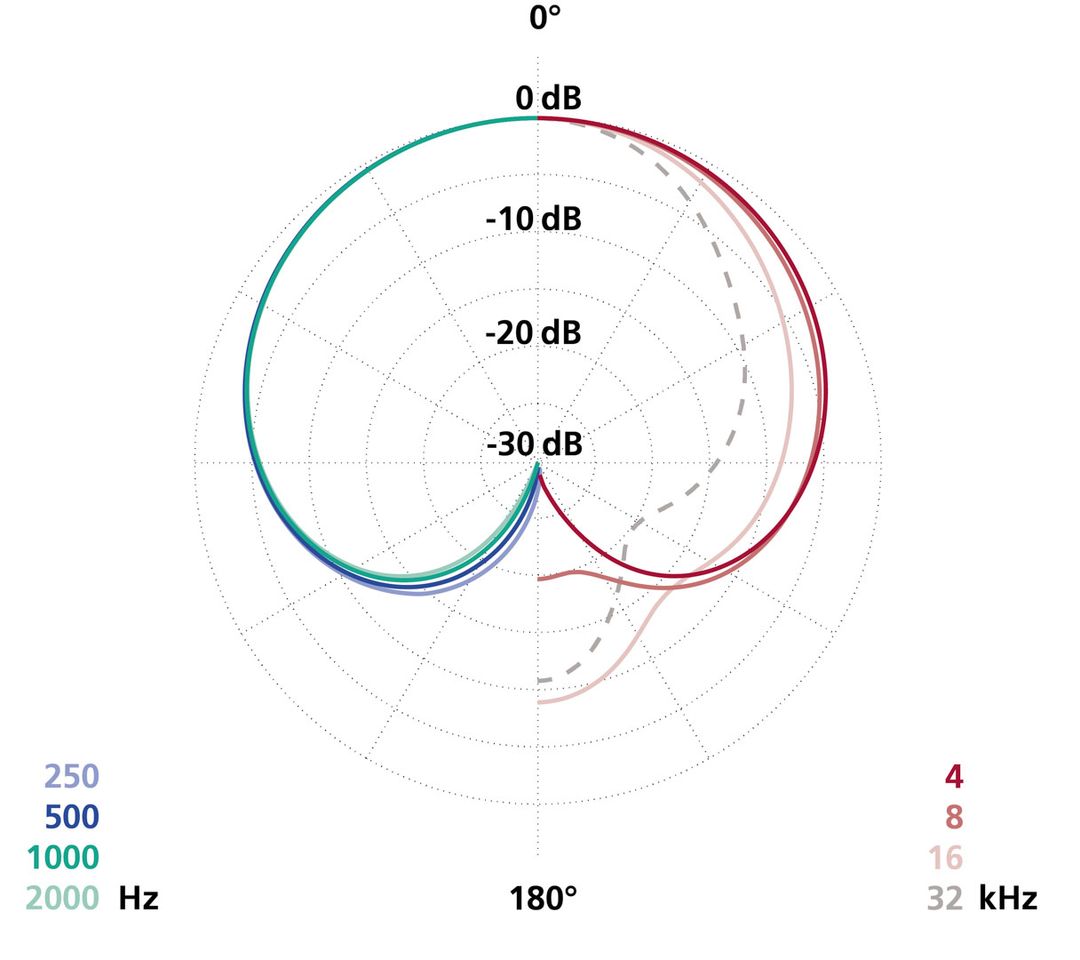

The directional response is especially well maintained even at higher frequencies, due to the acoustically transparent housing. There is less high-frequency emphasis of off-axis sound than occurs with most small, axial-response cardioids. The CCM 4V still sounds somewhat brigher than the CCM 4, however, because of its overall frequency response.

Practice

The CCM 4V may be easier to use in near-coincident setups than the CCM 4: the microphone bodies do not get in each other's way.

Technical Specifications

Frequency range

see corresponding capsule

Sensitivity

see corresponding capsule

Maximum sound pressure level (THD < 0.5 %)

136 dB-SPL (P48)
128 dB-SPL (P12)

Maximum output voltage

2,6 V (8,3 dbV) with 2 kΩ load

Low cut filter

20 Hz, 12 dB/Okt.

Output impedance

90 Ω @ 1 kHz

Maximum cable length

> 400 m

SCHOEPS RFI Shield

No

Powering standard / Valid range

P48 / > 40 V
P12 / > 10 V

Current consumption

4 mA (P48)
3,6 mA (P12)

Common mode rejection ratio (at 1 kHz)

> 55 dB

Minimum recommended load impedance

2 kΩ

Output

Lemo (CCM-L) or XLR-3M (CCM-K),
analog, 1 channel

Length

58 mm (CCM-L)

Diameter

20 mm

Weight

45 g (CCM-L)

Surface finish

matte gray

Product History

  • 1994: Launch of the CCM, hybrid technology circuit. The capsule part is identical to the MK capsules from the beginning
  • 2016: better RF filter to protect from interferences
  • 2017: Polarization voltage generator now with higher frequency above 200 kHz due to downpitching in sound design applications.

Graphics

Downloads

CCM

Compact Condenser Microphones

User guides, manuals

en

Variants & Options

  • No. 191701 "Matching of two microphone capsules including certificate": Although our normal production tolerances are very close, we can deliver specially matched compact microphone pairs.
  • No. 191102 custom color: other custom colors on request
  • Each CCM microphone is available as a standard version "L" with a Lemo plug and as a version "K" with a permanently attached 5 m cable and XLR-3M connector. (Specified cable lengths may vary up to 5% (+/-).)
