AK Surround M/4U (M/5U)

Adapter Cable from Miniature Multi-Pin to XLR-3

Features

  • Breakout cable: Multi-pin miniature Binder socket connector (AES65 standard) to 4, 5 or 6 x XLR-3M
  • Also available with heater powering via XLR-4 ("H" version)
  • Used for ORTF Surround, ORTF-3D and ORTF-2plus2

Order number

  • No. 152403 AK Surround M/4U
  • No. 152404 AK Surround M/5U
  • No. 152402 AK Surround H M/4U incl. PS-H
  • No. 154005 Splitterbox M/6U
  • No. 154006 Splitterbox 6U/M

Description

The AK Surround M/4U breakout cable divides the signals from a multi-pin miniature Binder socket connector to four XLR-3M plugs. It is also available in a five-channel version as the AK Surround M/5U. For six-channel applications, the M/6U splitter box is available.

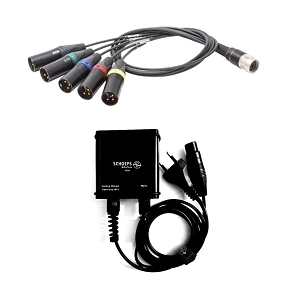

The AK Surround M/4U is further available as the AK Surround H M/4U with a connector for heater powering; an AC power supply is then included, which delivers 13 Volts at 350 mA for the heater built in to the windscreen of the ORTF Surround or ORTF-3D system. Instead of the AC power...

The AK Surround M/4U breakout cable divides the signals from a multi-pin miniature Binder socket connector to four XLR-3M plugs. It is also available in a five-channel version as the AK Surround M/5U. For six-channel applications, the M/6U splitter box is available.

The AK Surround M/4U is further available as the AK Surround H M/4U with a connector for heater powering; an AC power supply is then included, which delivers 13 Volts at 350 mA for the heater built in to the windscreen of the ORTF Surround or ORTF-3D system. Instead of the AC power supply, a battery pack can be used (12 VDC at >= 350 mA, or a constant current supply of 350 mA at min. 20 Volts open circuit).
