CMC 1 KV

MICROPHONE AMPLIFIER

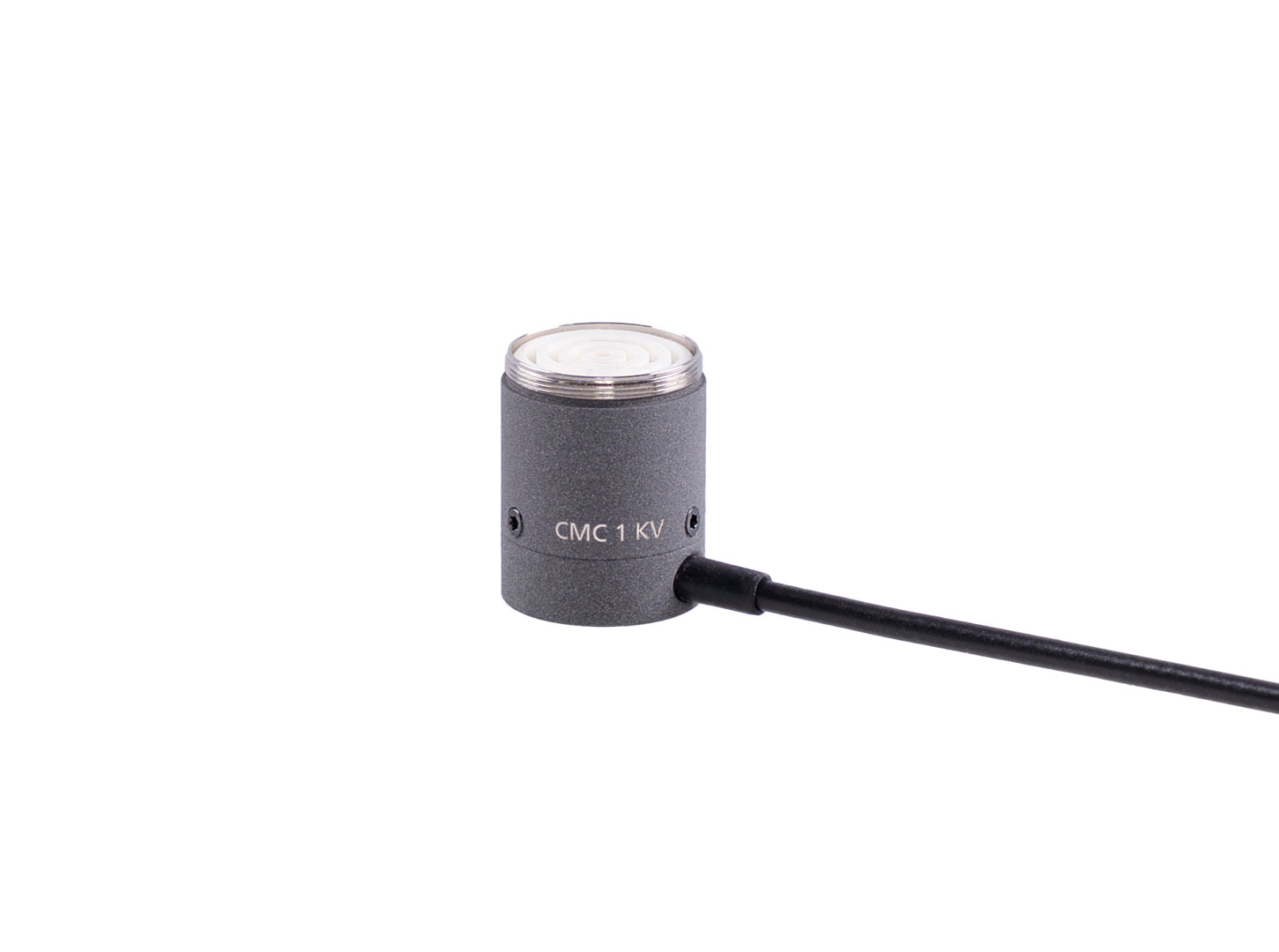

CMC 1 KV

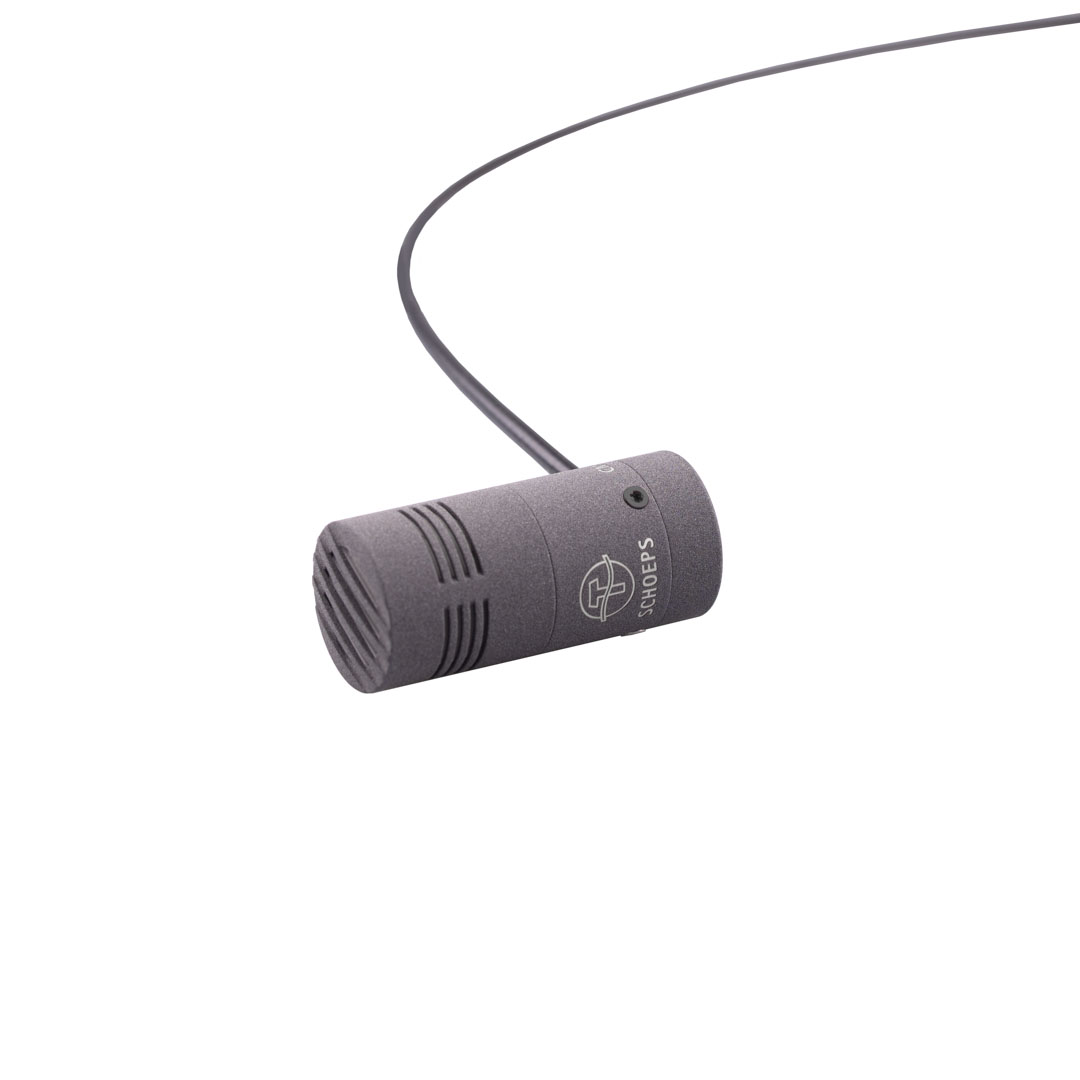

CMC 1 KV + MK 41

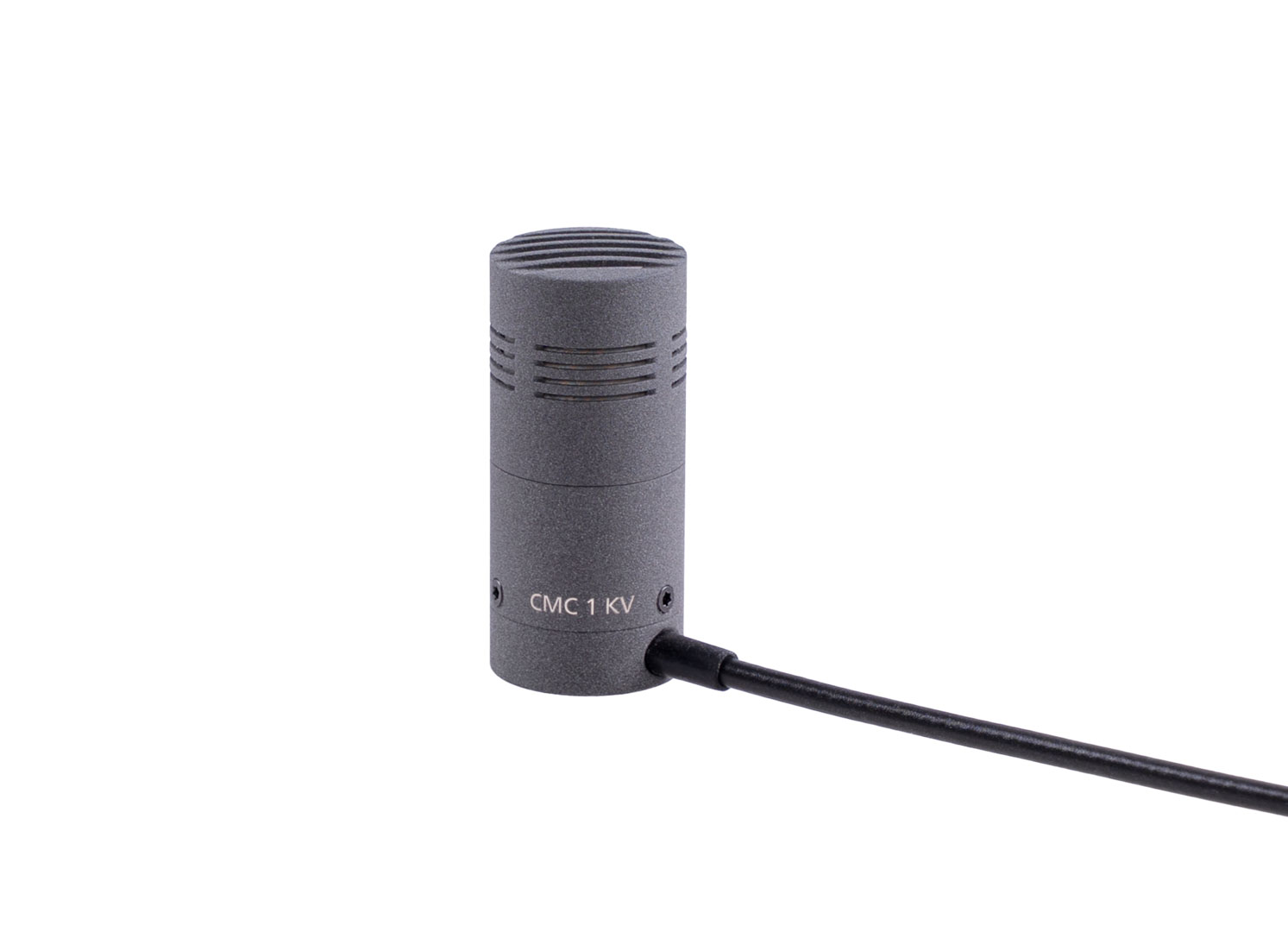

CMC 1 KV + MK 41

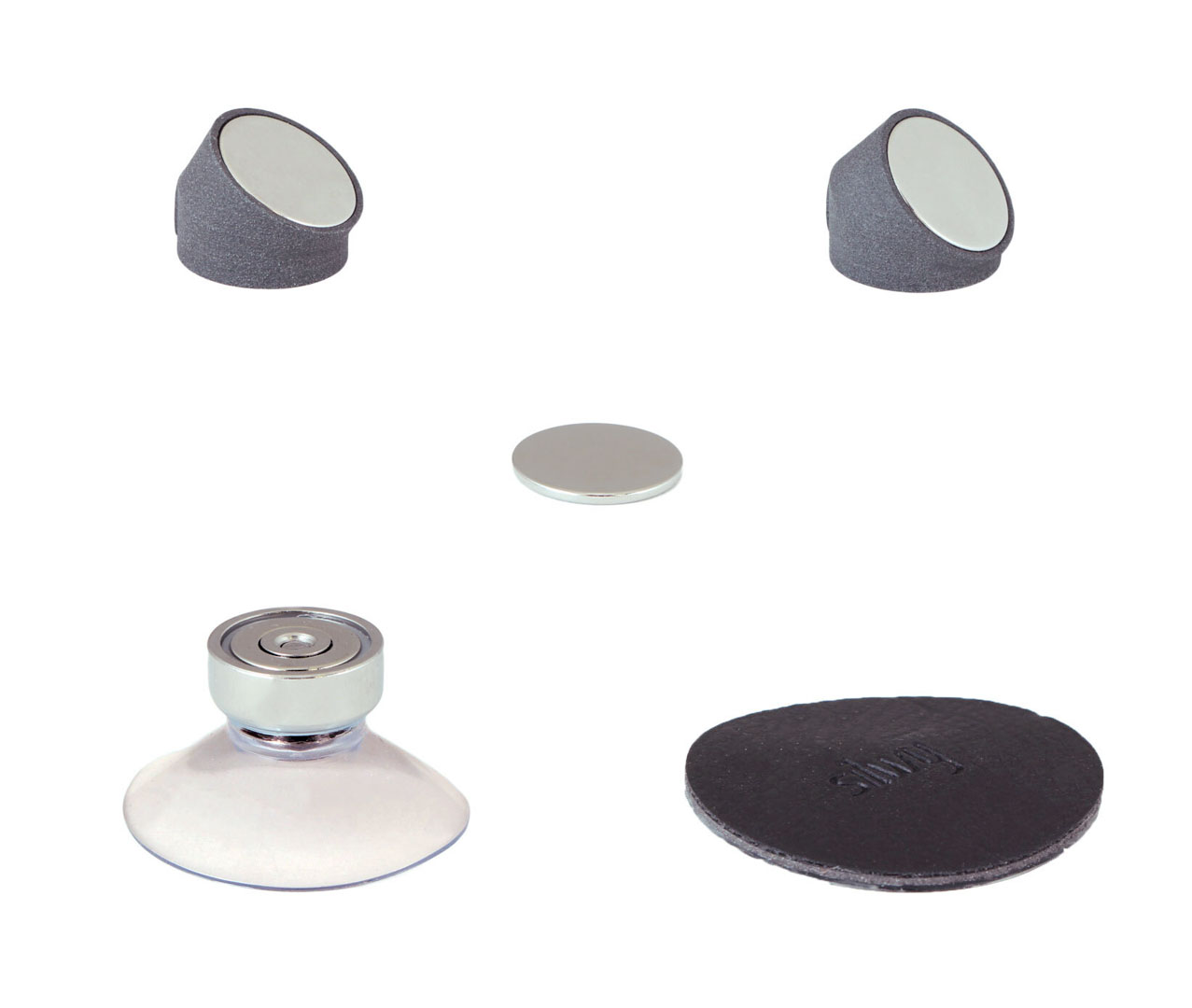

Magnetic accessories (in the box)

Output options

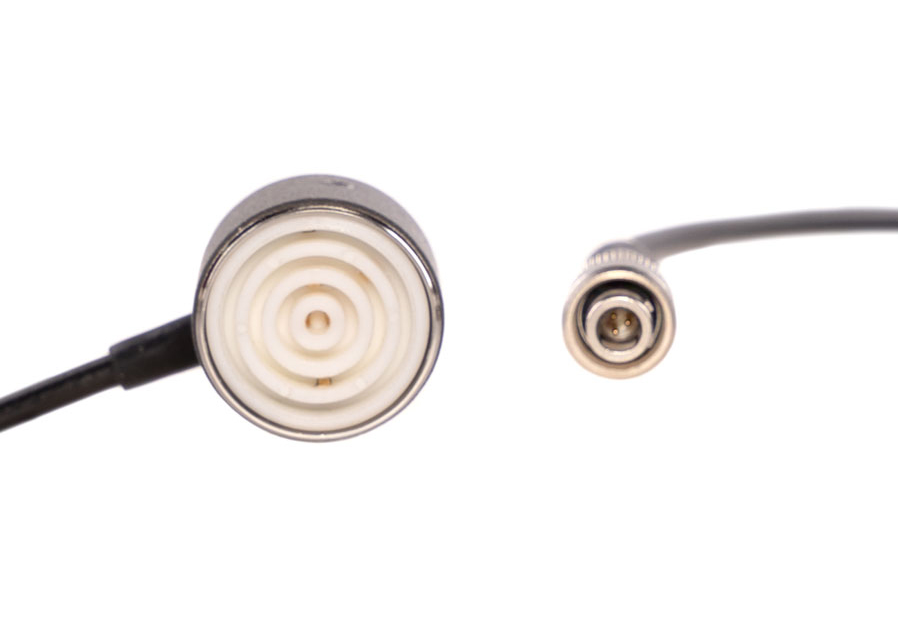

Input connector, and Lemo output connector

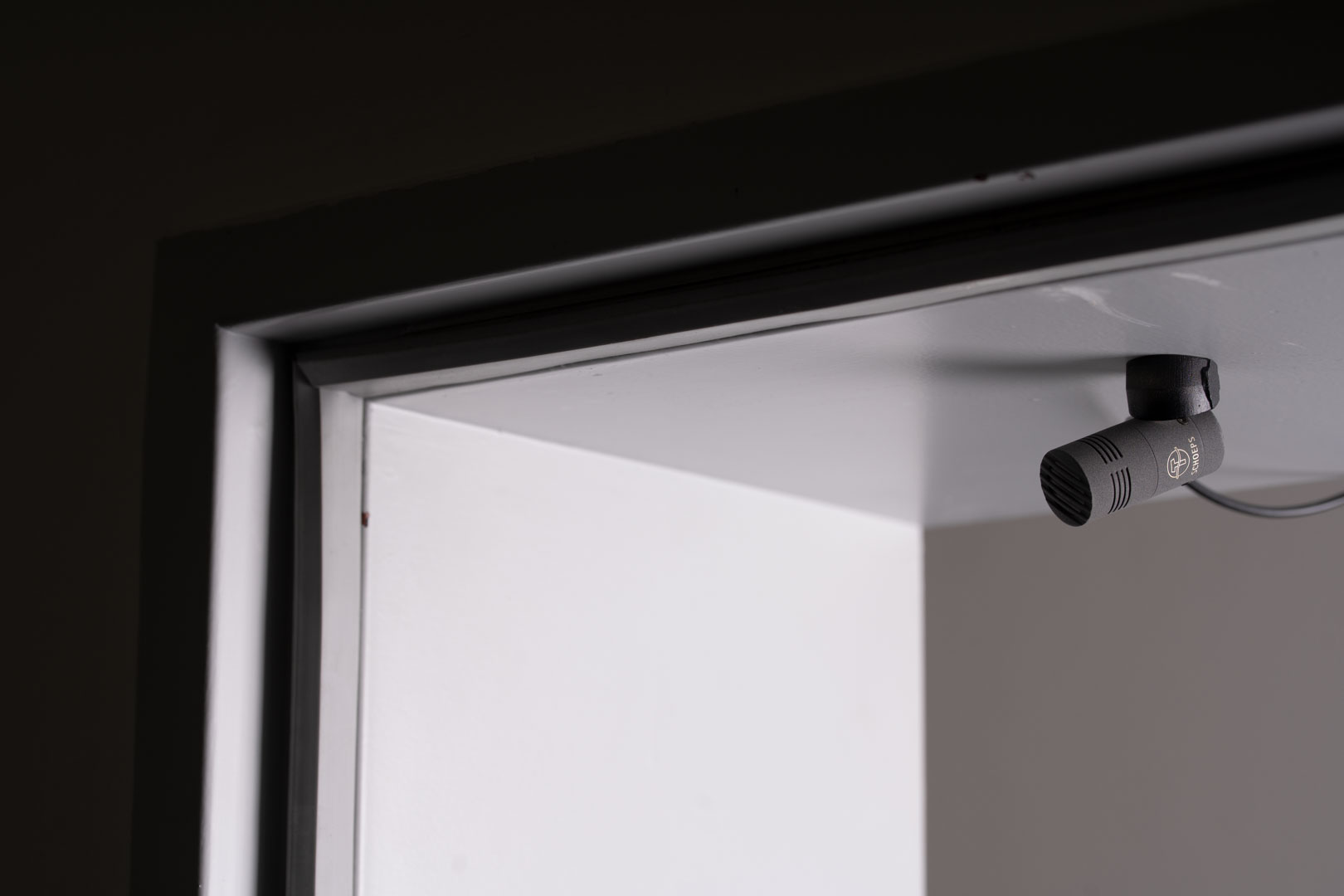

Application with angle piece

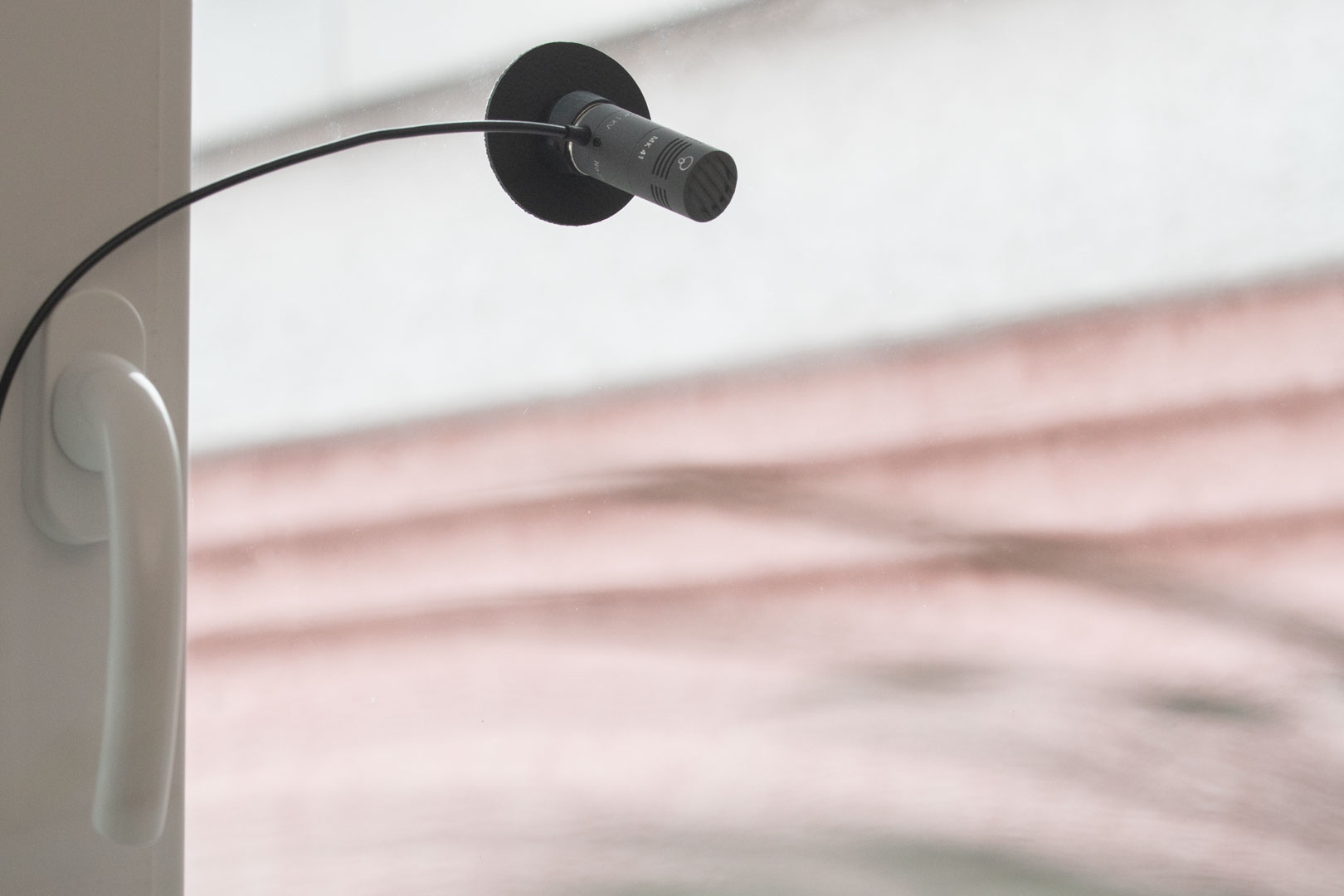

Application with self-adhesive magnetic pad and angle piece

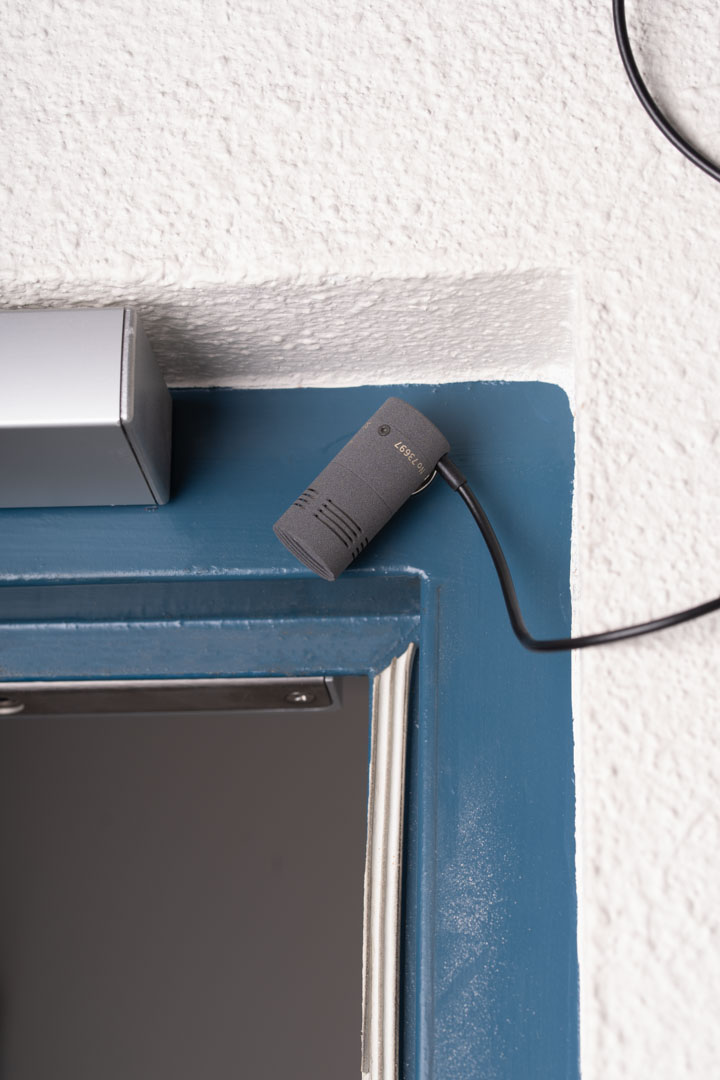

Application with disc magnet

Application with disc magnet

Features

  • Version of the CMC 1 with fixed, laterally attached cable
  • magnetic back for easy mounting with the included magnetic accessories
  • fully-fledged alternative to the well-known CMC 6, compatible with all existing MK capsules and active Colette accessories, e.g. CUT 60 or RC
  • shortest version of the CMC 1
  • available with different cable lengths and plugs, also with Lemo-3pin for use on pocket transmitter with P12/48. Standard: 2m with XLR3M
  • specified lengths may vary up to 5% (+/-)

Order number

  • No. 132018: 2 m Cable, XLR3M
  • No. 132019: 0,5 m Cable, Lemo-3pin Sound Devices
  • No. 132020: 0,5 m Cable, Lemo-3pin Zaxcom
Find dealer
Matthias Richter

"Recording dialog in a car always presents us sound engineers with unique challenges." Matthias Richter talks about his experiences and gives helpful tips. Find his report here.

Matthias Richter, Production Sound Mixer

Description

The CMC 1 KV is identical to the CMC 1 U, but instead of the built-in XLR connector, it has a fixed cable coming out the side.

The CMC 1 KV is identical to the CMC 1 K, but has a side-outgoing cable instead of a front-outgoing cable.

The variants of the CMC 1 KV with Lemo connector are compatible with pocket transmitters that provide P48 or P12, e.g. Zaxcom ZMT 4, SoundDevices A20-TX, Deity DLTX.

Practice

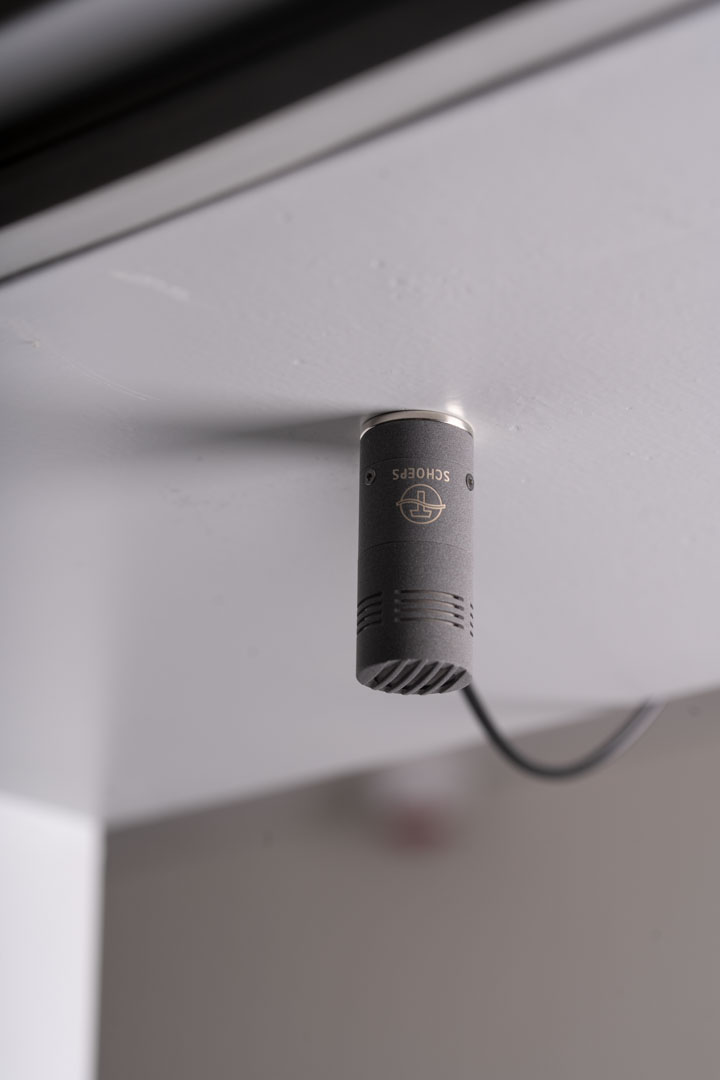

The CMC 1 KV is particularly suitable as a "plant mic" in film sound or for all recordings where the microphone needs to be discreetly hidden. With the supplied magnet accessories, it can be easily mounted on many surfaces, e.g. door frames, steel beams, windows, table tops etc..

The CMC 1 KV comes with

  • No. 232018/19/20: CMC 1 KV with output connector XLR or Lemo-3pin
  • No. 161116: Magnetic angle piece 30°
  • No. 161117: Magnetic angle piece 45°
  • No. 302034: Disc magnet 20 mm
  • No. 302033: Self-adhesive magnetic pad 5 cm black
  • No.302039: suction cup with magnet
  • No. 161105: Stand clamp SG 20

The accessories can also be ordered as spare parts.

Technical Specifications

Frequency range

20 Hz – 20 kHz

Maximum output voltage

1.8 V (5 dBV) at 1 kΩ load

Maximum sound pressure level (THD < 0.5 %)

135 dB-SPL (P48) with MK 4
131 dB-SPL (P12) with MK 4

Low cut filter

20 Hz, 12 dB/octave

Output impedance

50 Ω ± 1 Ω (8 Hz – 50 kHz)

Minimum recommended load impedance

1 kΩ

Common mode rejection ratio (at 1 kHz)

> 55 dB

Maximum cable length

> 400 m / 1300 ft

SCHOEPS RFI Shield

Yes

Powering standard / Valid range

P48 / 30 V – 52 V
P12 / 11 V – 13 V

Current consumption

2 mA (P48)
3 mA (P12)

Output

XLR-3M, analog, 1 channel

Length

29 mm / ~1.1"

Weight

~28 g / 1 oz (without cable)

Diameter

20 mm / 0.8"

Latency period

matte gray
custom color:
Chromagreen, Smoked Silver (looks like the classic Schoeps nickel)

Product History

Downloads

Pin Configuration

for Sound Devices Lemo, Zaxcom Lemo and XLR

 -

Variants & Options

The CMC 1 KV is available in the following variants:

  • #132018: Standard: 2 m (6.56 ft) cable with XLR-3M connector.
  • #132019: Option: 0.5 m (1.65 ft) cable with Lemo-3pin for Sound Devices A 10
  • #132020: Option: 0.5 m (1.65 ft) cable with Lemo-3pin for Zaxcom ZMT (Phantom)
  • Special versions with any cable length



The CMC 1 is available in five housing variants:

The CMC 1 KV is available in the following variants:

  • #132018: Standard: 2 m (6.56 ft) cable with XLR-3M connector.
  • #132019: Option: 0.5 m (1.65 ft) cable with Lemo-3pin for Sound Devices A 10
  • #132020: Option: 0.5 m (1.65 ft) cable with Lemo-3pin for Zaxcom ZMT (Phantom)
  • Special versions with any cable length



The CMC 1 is available in five housing variants:

  • CMC 1 U: output connector XLR3M
  • CMC 1 L: output connector Lemo
  • CMC 1 K: fixed attached cable
  • CMC 1 KV: laterally outgoing cable
  • CMC 1 SO: fixed gooseneck and Lemo3pin output for pocket transmitter

No. 191102 custom color: Chromagreen, Smoked Silver (looks like the classic Schoeps nickel), other custom colors on request

No. 191201 custom engraving
