CCM 4P

Compact Microphone for close pickup

Features

  • cardioid pattern
  • for pickup of speech or music at close range (under 20 cm)
  • moderate attenuation of low frequencies
  • Preferred applications: close speech pickup

This microphone can also be ordered as a modular Colette microphone, where the CMC 1 L amplifier is combined with an MK microphone capsule. (CMC 1 L + MK 4P)
This variant allows the capsule to be exchanged and has advantages in terms of electrical properties in combination with digital wireless transmitters.


Order number

  • No. 121701 CCM 4P L (standard Lemo version)
  • No. 121702 CCM 4P K (fixed cable version with XLR)

Description

This cardioid microphone is designed for the very closest speech pickup, i.e. directly in front of the speaker’s mouth.

Its low-frequency rolloff is compensated by proximity effect. Thus it has (up to the point of its high-frequency emphasis) a flat frequency response for the speaker’s voice, while showing a rolloff at low frequencies for all sound that originates from a greater distance. As a result, background sounds are picked up less strongly than the person speaking.

Sample Player

Your browser is outdated. Please update to the latest version of your browser to use the sample player.

Product History

  • 1994: Launch of the CCM, hybrid technology circuit. The capsule part is identical to the MK capsules from the beginning
  • 2016: better RF filter to protect from interferences
  • 2017: Polarization voltage generator now with higher frequency above 200 kHz due to downpitching in sound design applications.

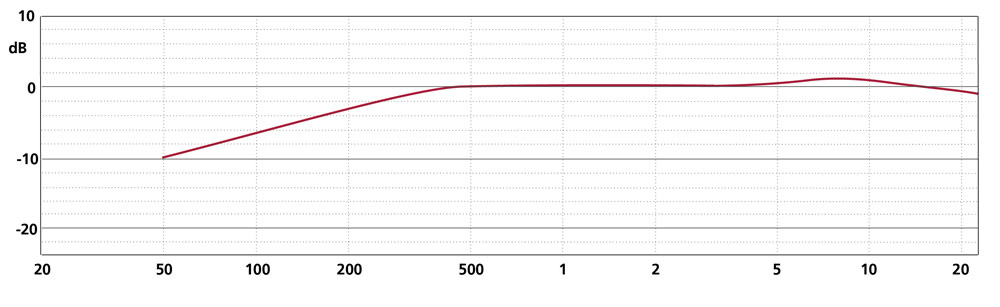

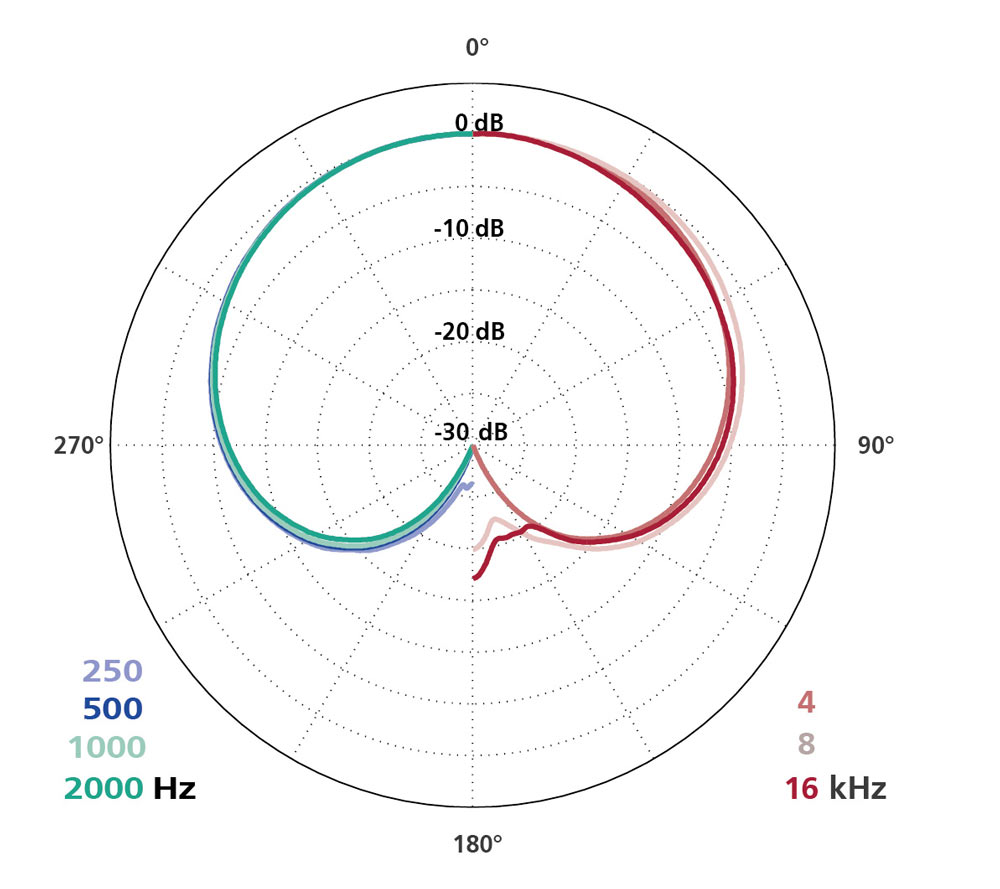

Graphics

Downloads

CCM

Compact Condenser Microphones

User guides, manuals

en
Close Pickup Capsules

P-Series capsules & Headset

Product sheets

de | en

Variants & Options

  • No. 191701 "Matching of two microphone capsules including certificate": Although our normal production tolerances are very close, we can deliver specially matched compact microphone pairs.
  • No. 191102 custom color: other custom colors on request
  • Each CCM microphone is available as a standard version "L" with a Lemo plug and as a version "K" with a permanently attached 5 m cable and XLR-3M connector. (Specified cable lengths may vary up to 5% (+/-).)
