KMIT

Colette shotgun microphone capsule

New

Features

  • Shotgun microphone capsule for the Colette series
  • Acoustical characteristics identical to those of the CMIT 5 and MiniCMIT
  • Compatible with all Colette-series amplifiers, e.g. CMC 1, CMC 6 (xt), CMD 42, and even with the CMC 5...
  • Steep, integrated low-cut filter (ca. 70 Hz)
  • Immune to moisture

Order number

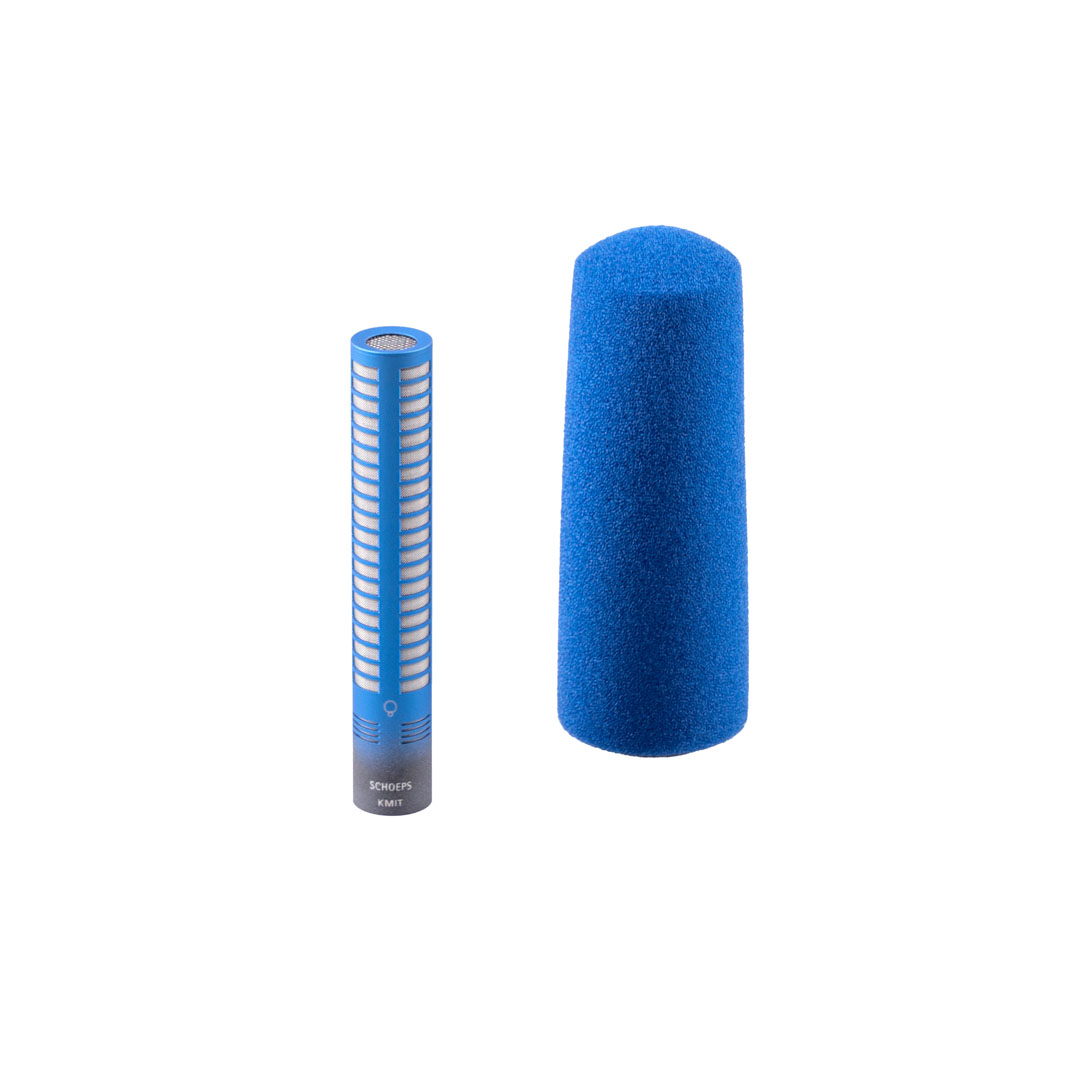

  • No. 131901 KMIT Colette shotgun capsule (blue with transition to Nextel gray)

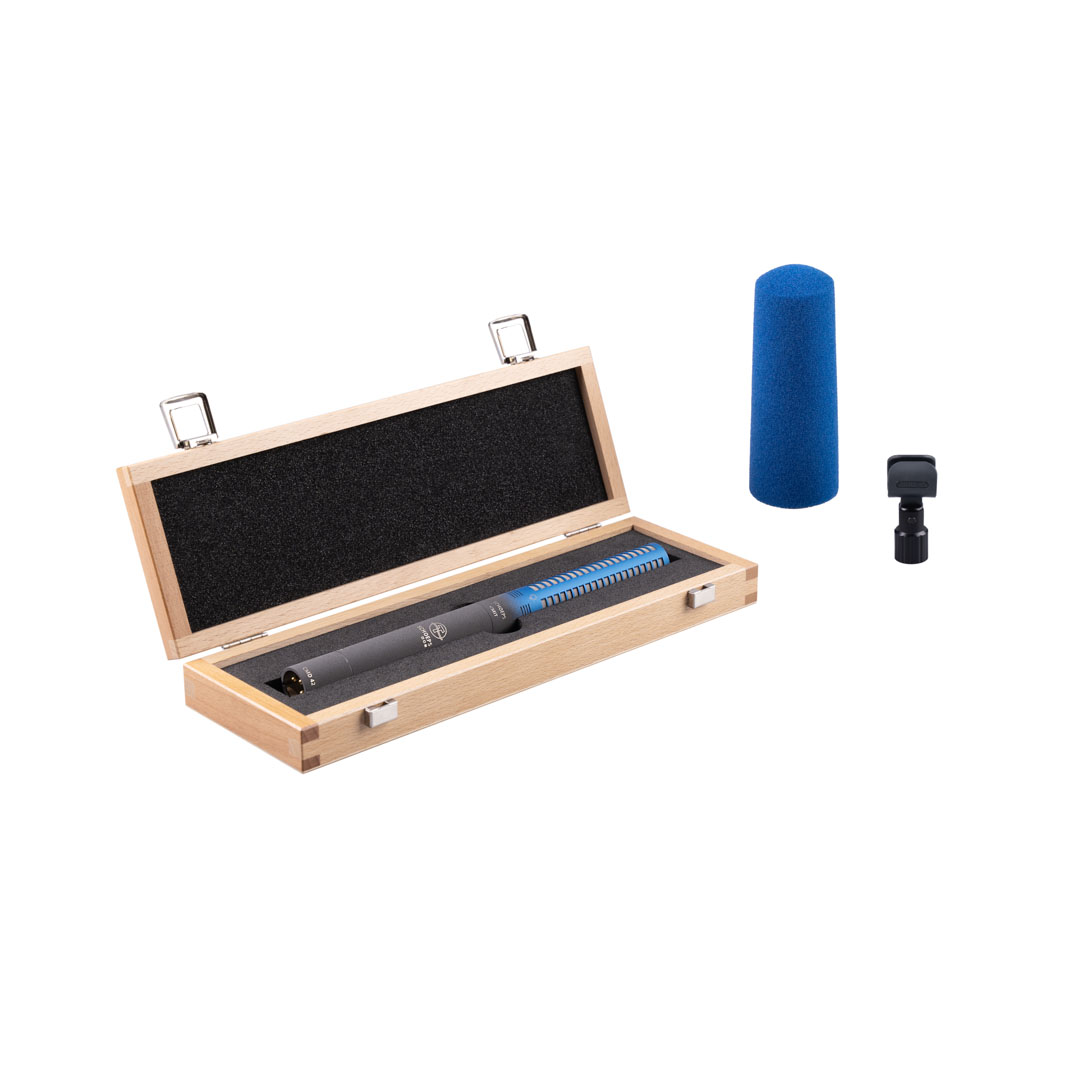

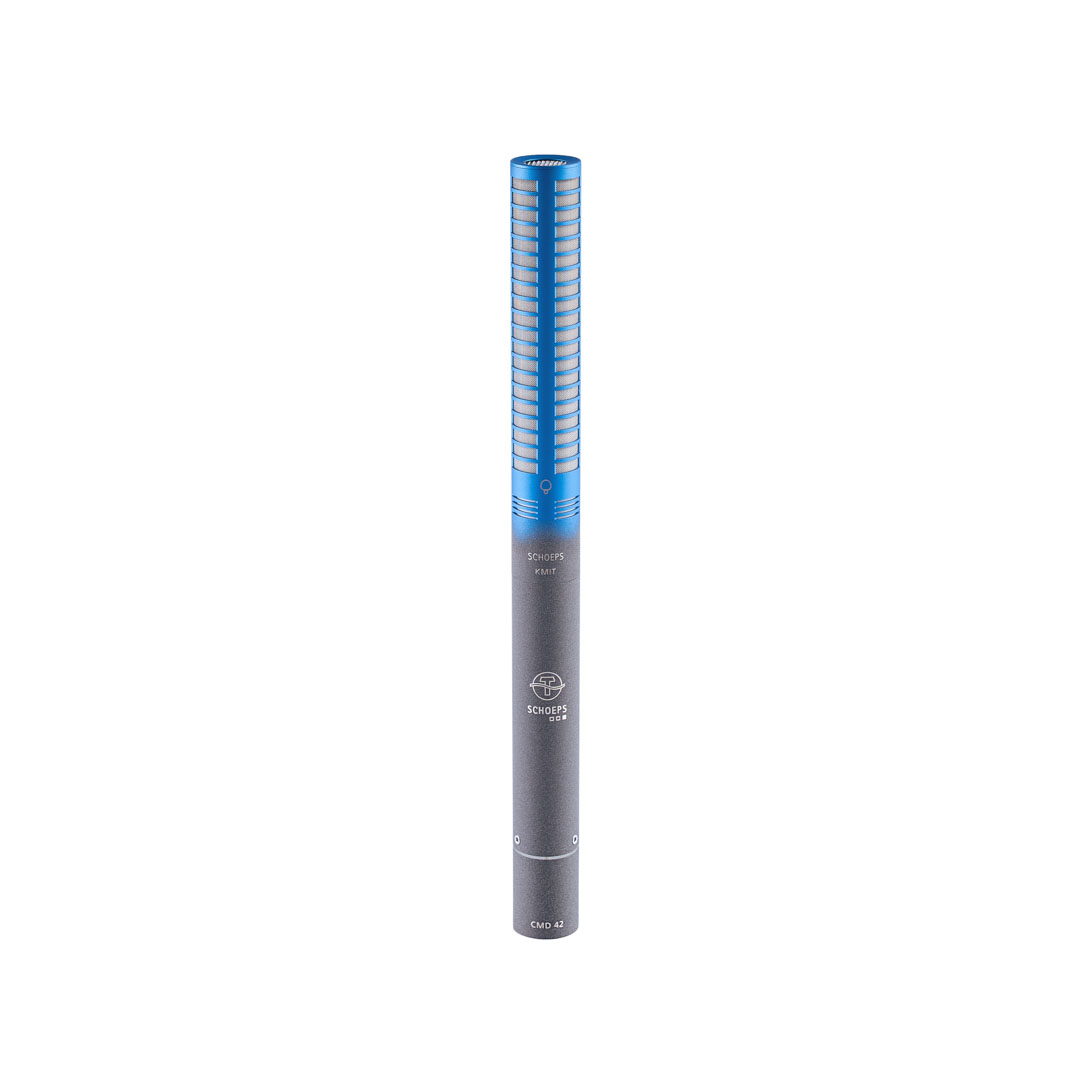

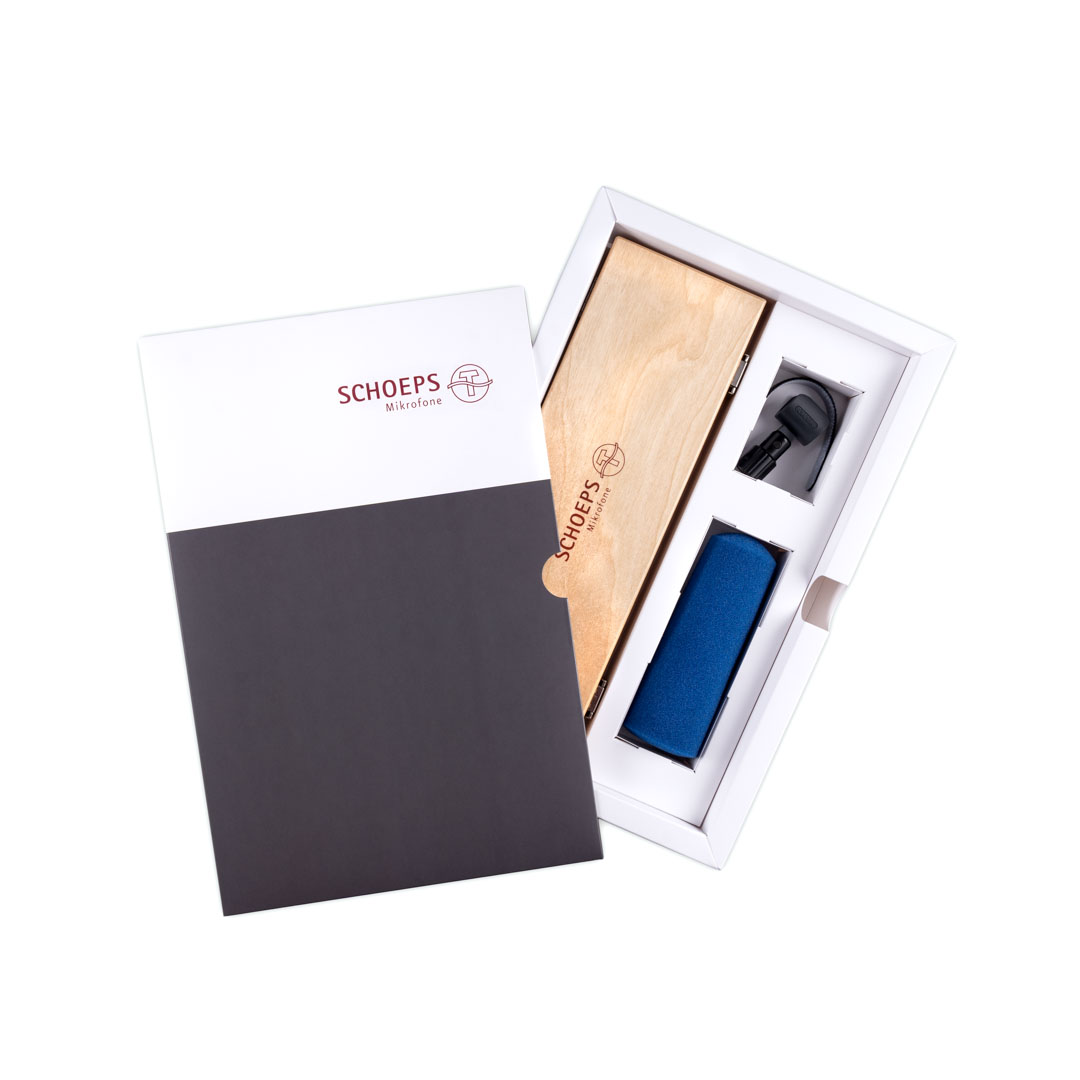

  • No. 138841 KMIT Mono Set with CMD 42 (blue/gray)

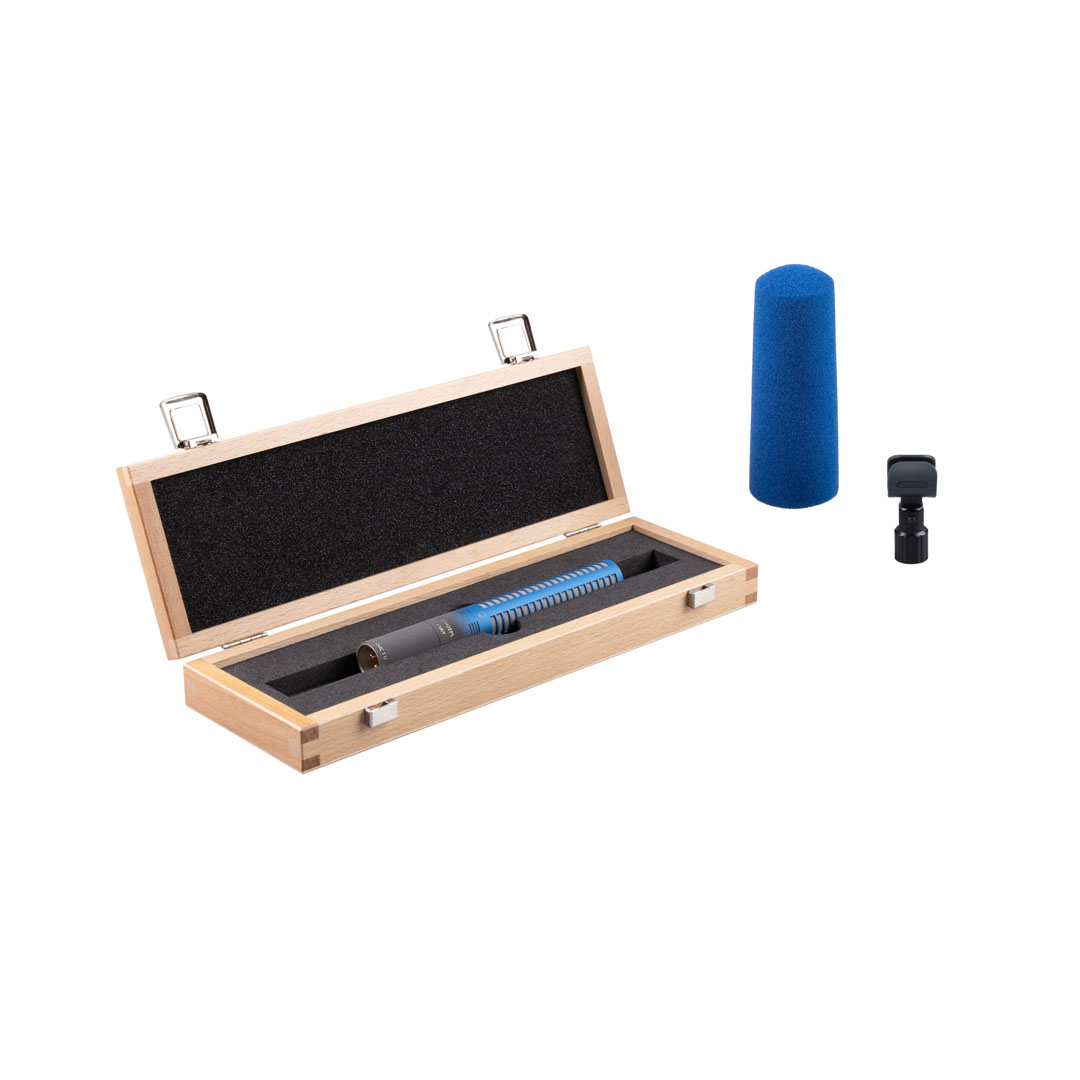

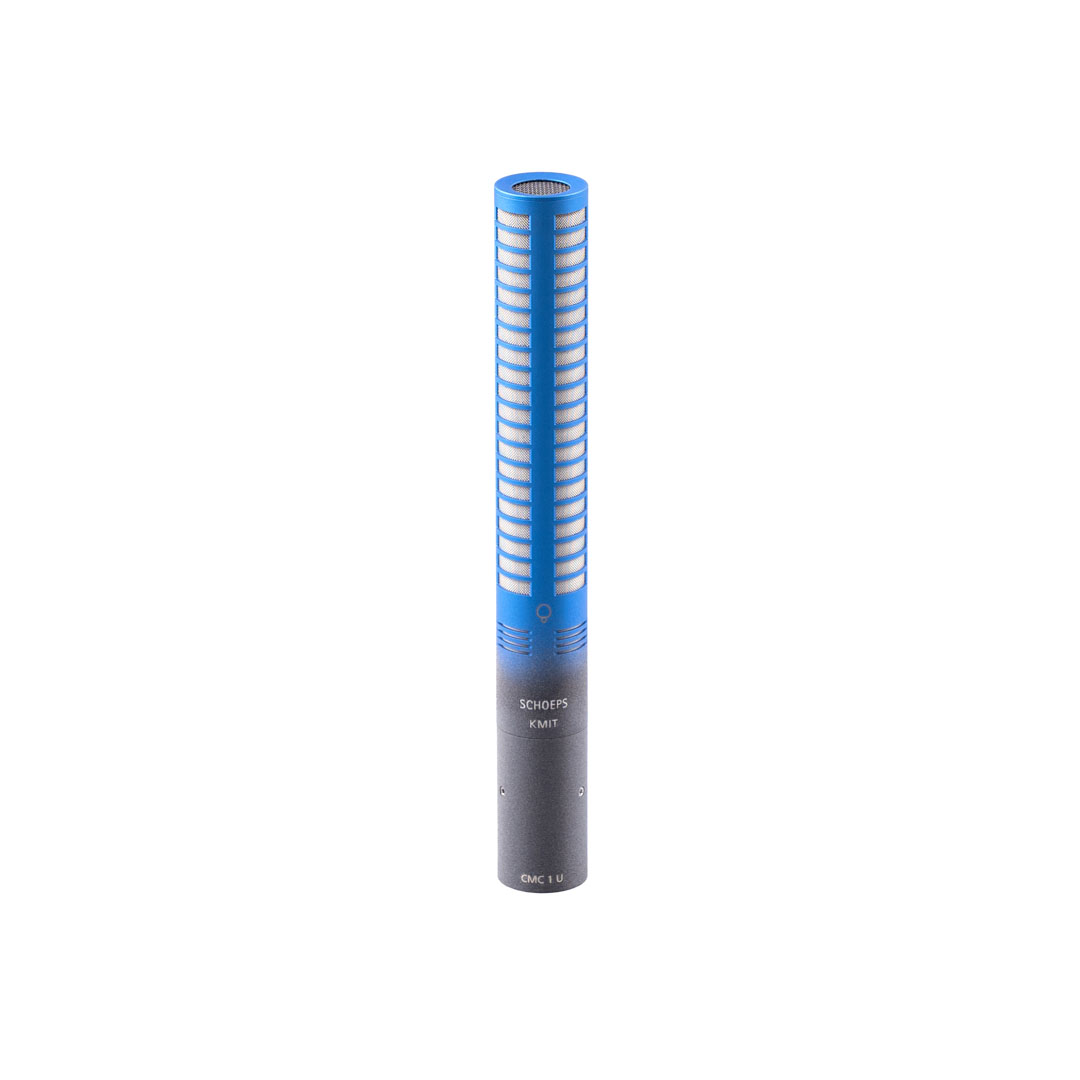

  • No. 138801 KMIT Mono Set with CMC 1 U (blue/gray)

Description

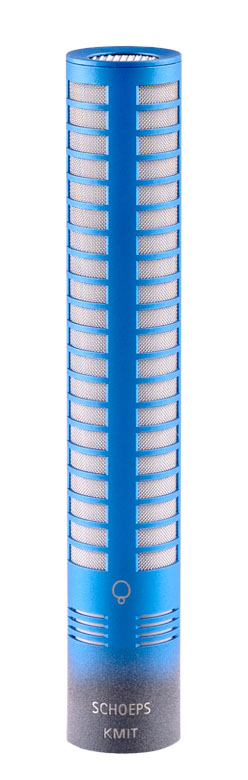

The KMIT is the shotgun microphone capsule for the modular Colette series. It is derived directly from the CMIT series, inheriting the same acoustical qualities such as high directivity combined with low coloration of lateral-incident sound, and very smoothly increasing directivity at higher frequencies. The KMIT, CMIT 5 and MiniCMIT can be interchanged without altering the sound.

The KMIT is compatible with all amplifiers of the Colette series, e.g. with the current analog amplifiers CMC 6 and CMC 1 as well as the digital amplifier CMD 42. Thu...

The KMIT is the shotgun microphone capsule for the modular Colette series. It is derived directly from the CMIT series, inheriting the same acoustical qualities such as high directivity combined with low coloration of lateral-incident sound, and very smoothly increasing directivity at higher frequencies. The KMIT, CMIT 5 and MiniCMIT can be interchanged without altering the sound.

The KMIT is compatible with all amplifiers of the Colette series, e.g. with the current analog amplifiers CMC 6 and CMC 1 as well as the digital amplifier CMD 42. Thus, SCHOEPS now offers for the first time a digital shotgun microphone that can be controlled via the Remote App.

moreless

Practice

The KMIT's sound quality is the same as that of the CMIT 5/MiniCMIT, apart from slight differences in high-pass filtering that depend on which amplifier is being used. The choice among CMC 6, CMC 1 U/L or CMD 42 will mostly be determined by practical circumstances - the size and weight of the setup, and the availability of an AES42 input.

Among the analog amplifiers, Schoeps generally recommends the CMC 1 due to its small size, optimal interference protection, and high maximum sound levels. The CMC 1 L amplifier with miniature Lemo connector...

The KMIT's sound quality is the same as that of the CMIT 5/MiniCMIT, apart from slight differences in high-pass filtering that depend on which amplifier is being used. The choice among CMC 6, CMC 1 U/L or CMD 42 will mostly be determined by practical circumstances - the size and weight of the setup, and the availability of an AES42 input.

Among the analog amplifiers, Schoeps generally recommends the CMC 1 due to its small size, optimal interference protection, and high maximum sound levels. The CMC 1 L amplifier with miniature Lemo connector allows for an especially compact setup; the CMC 1 U has a somewhat longer, standard XLR connector. The CMC 6 amplifier is likewise compatible - and with the CMC 6 xt version, signals up to 40 kHz can be recorded for "downpitching" sound-design applications.

The digital CMD 42 amplifier offers the greatest number of options, but requires an AES42 input. The CMD's Remote App (available free of charge for iOS or Android phones) allows all three filters of the CMIT 5 to be enabled in the CMD 42 as well.

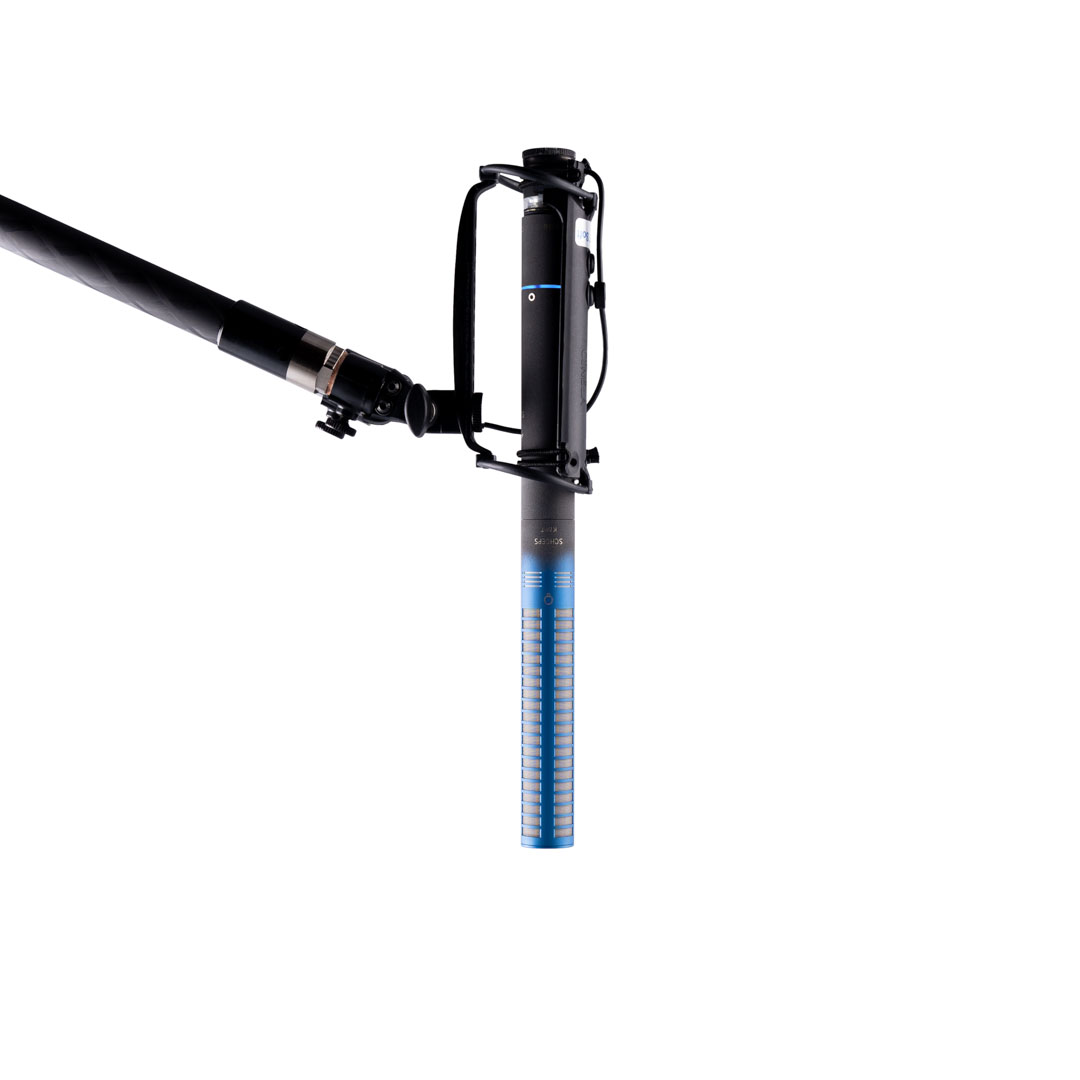

The built-in, steep high-pass filter allows the KMIT to be used unproblematically on a boom. The steepest cutoff occurs when a CMC 1 is used; the CMC 42 offers a further, additional high-pass filter with an adjustable cutoff frequency.

moreless

Technical Specifications

Frequency range

70 Hz - 22 kHz with CMC 1/CMC 6

70 Hz - 40 kHz with CMC 6xt/CMD 42

Low cut filter

70 Hz, 21 dB/Oct with CMC 1/ CMC 6

60 Hz, 22 dB/Oct with CMC 6 xt/CMD 42

Equivalent noise level (A-weighted)

14 dB

Equivalent noise level (CCIR)

24 dB

Maximum sound pressure level (THD < 0.5 %)

130 dB-SPL with CMC 6
133 dB-SPL with CMC 1
133 dB-SPL with CMD 42

Current consumption

P48:
4,2 mA with CMC 6
3,1 mA with CMC 1

Length

122 mm
Mono-Set with CMC 1 KV: 144 mm
Mono-Set with CMC 1 L: 148 mm
Mono-Set with CMC 1 U: 158 mm
Mono-Set with CMC 6/CMD 42: 234 mm

Weight

50 g
Mono-Set with CMC 1 KV: 83 g
Mono-Set with CMC 1 L: 78 g
Mono-Set with CMC 1 U: 86 g
Mono-Set with CMC 6: 110 g
Mono-Set with CMD 42: 120 g

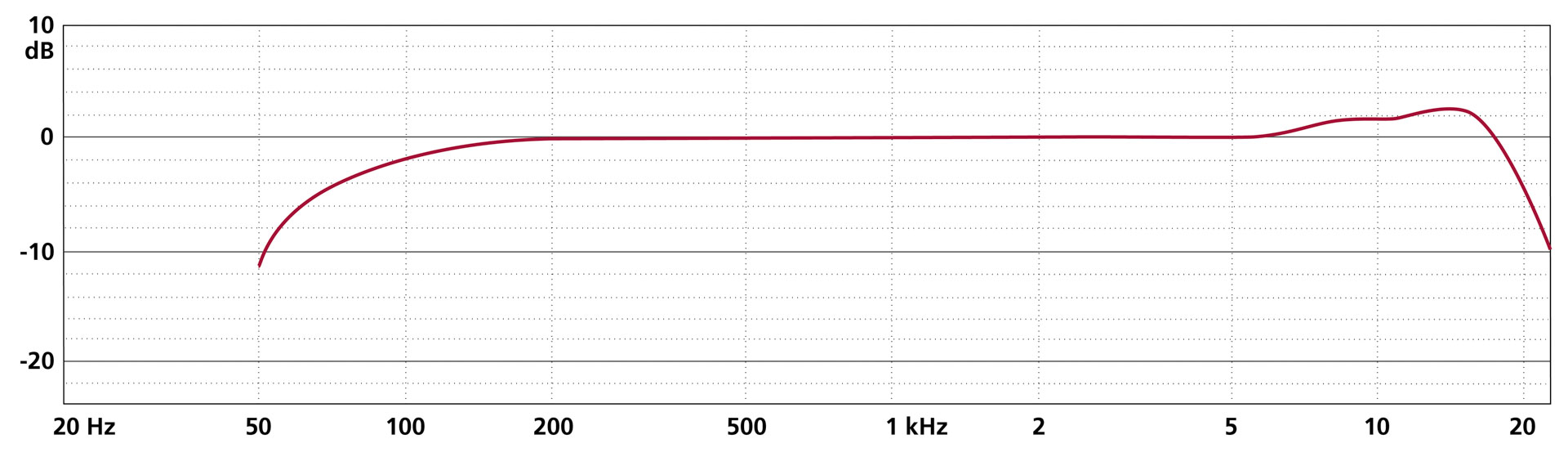

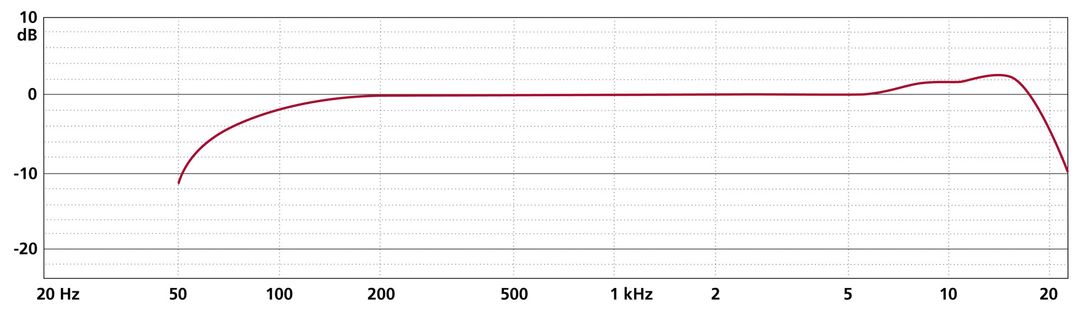

Graphics
