MK 41

Microphone Capsule

Features

  • Supercardioid directional pattern
  • High directivity, at low and medium frequencies comparable to that of a shotgun microphone
  • Natural sound due to flat frequency response which remains largely the same for all directions of pickup. This is particularly important for indoor recording
  • Preferred uses: recording dialogue for film sound; as a spot microphone in the orchestra and on the opera stage




Order number

  • No. 131017

Description

The MK 41 effectively attenuates diffuse sound energy and produces a clear, "dry" sound pickup.

Its polar pattern is exceptionally frequency-independent: sounds from the side and back are strongly attenuated, but picked up without false coloration. This feature has made the MK 41 an international standard for indoor film sound.

The susceptibility of the MK 41 to acoustic feedback is lower than with any other SCHOEPS capsule type, provided that no loudspeaker radiates directly from the rear. The sensitivity minimum of the supercardioid occurs at...

The MK 41 effectively attenuates diffuse sound energy and produces a clear, "dry" sound pickup.

Its polar pattern is exceptionally frequency-independent: sounds from the side and back are strongly attenuated, but picked up without false coloration. This feature has made the MK 41 an international standard for indoor film sound.

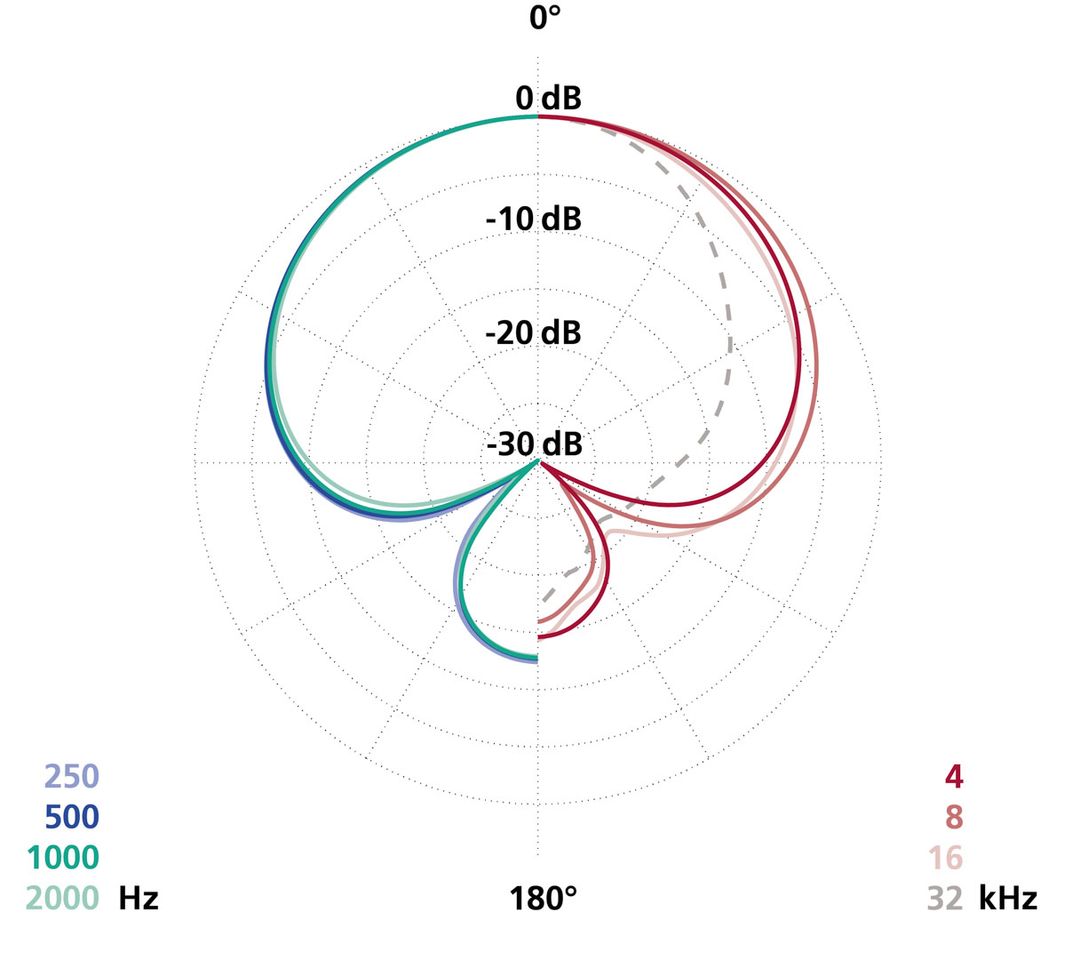

The susceptibility of the MK 41 to acoustic feedback is lower than with any other SCHOEPS capsule type, provided that no loudspeaker radiates directly from the rear. The sensitivity minimum of the supercardioid occurs at approximately a 125° angle of incidence.

The directional effect is independent of frequency, so that off-axis and diffuse sound are picked up free of false coloration, thus sounding natural. That is a real advantage over shotgun microphones, which have appreciably greater directivity only at higher frequencies, and frequency response (and thus sound quality) that depends on the direction of sound incidence.

Thus for many situations the MK 41 offers an interesting alternative to a shotgun microphone, even if its small dimensions do not appear to suggest high directivity. As a capsule without an interference tube in front of it, the MK 41 can also be placed closer to the sound source.

moreless

Practice

Technical Specifications

Pickup pattern

Supercardioid

Frequency range

40 Hz - 26 kHz
40 Hz - 41 kHz with CMC 6xt

Sensitivity

-36 dB (V/Pa), 16 mV/Pa

Equivalent noise level (A-weighted)

14 dB

Equivalent noise level (CCIR)

23 dB

Signal-to-noise ratio (A-weighted)

80 dB

Maximum sound pressure level (THD < 0.5 %)

131 dB-SPL with CMC 6
135 dB-SPL with CMC 1

Length

22 mm

Diameter

20 mm

Weight

17 g

Surface finish

matte gray
custom color:
Chromagreen, Smoked Silver (looks like the classic Schoeps nickel)

Graphics

Variants & Options

No. 191701 matching: Although our normal production tolerances are very close, we can deliver specially matched capsule pairs for a small extra charge.

No. 191102 custom color: Chromagreen, Smoked Silver (looks like the classic Schoeps nickel), other custom colors on request

No. 191201 custom engraving
