Le SuperCMIT est actuellement indisponible en raison de problèmes d'approvisionnement en composants électroniques.
Le SuperCMIT est actuellement indisponible en raison de problèmes d'approvisionnement en composants électroniques.

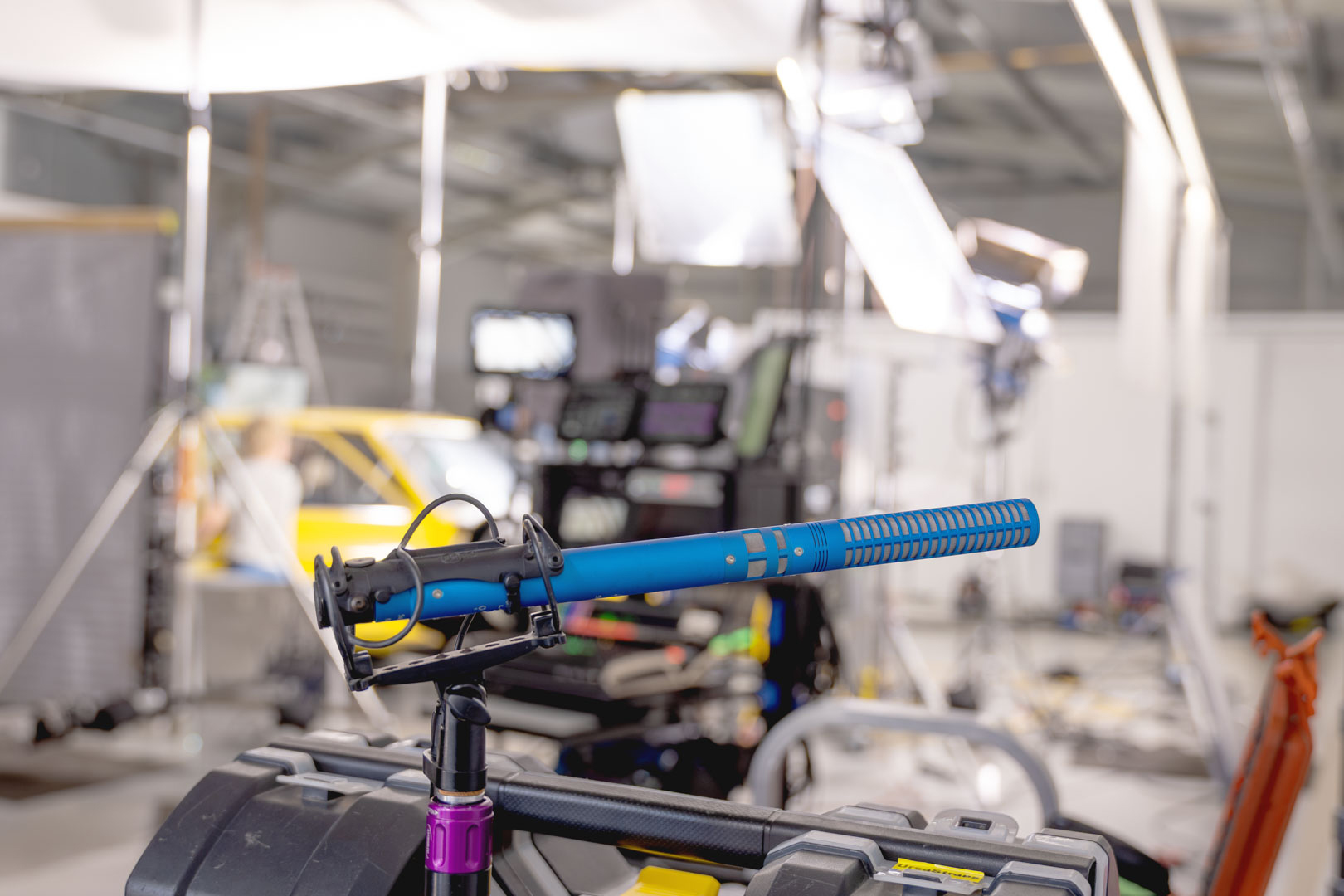

Le SuperCMIT définit un nouveau type de micros canon. Sa directivité va bien au-delà de celui d'un micro canon classique, même long. Il offre ainsi des possibilités totalement nouvelles à l'ingénieur du son.
Le SuperCMIT est un microphone numérique basé sur la norme AES-42, qui est pris en charge par la plupart des enregistreurs mobiles.
SuperCMIT, CMIT 5 and ORTF-3D at a famous Paris Tennis tournament:
„Immersive sound has been produced by France Televisions for a decade, but this year a unified setup of Schoeps microphones is used on all courts covered by France Télévisions to provide one of the most precise sounds of ball hits.“
3D and object-oriented audio production associated with Ultra HD:
The main court is covered by many microphones. 4 super-directional microphones (Schoeps SuperCMIT) favor the capture of racket strikes, associated with 4 semi-canon microphones (2 Schoeps CMIT-5 mounted on the chair of the referee and 2 Neumann KMR81 associated with the cameras filming the players in service) on both sides of the net.
The referee wears a lavalier microphone from the quarter finals, the sound of the microphone connected to the sound of the stadium for the announcement of scores is also included. Two other microphones (Schoeps cardioids MK 4) are planned to capture possible discussions of the players with the referee during the breaks. Finally, the legendary atmosphere of the main court was captured this year with a Schoeps ORTF-3D microphone equipped with 8 capsules and capable of reproducing sound in 3 dimensions.
Votre navigateur est obsolète. Veuillez vous mettre à jour avec la dernière version de votre navigateur pour utiliser le lecteur d'exemple.
from 0° (1 m distance), river at 90°
at 0°, 90°, 180°
Ball sounds in a big, fully occupied stadium, distance approx. 10-20m
Directivité | Hypercardioïde |
Gamme de Fréquences | 40 Hz - 20 kHz |
Sensibilité | -31 dBFS à 1 Pa |
Bruit équivalent (pondéré-A) | 14 dB (canal 1) 16 dB (canal 2) |
Bruit équivalent (CCIR) | 27 dB (canal 1) 28 dB (canal 2) |
Rapport signal/bruit | 80 dB (canal 1) 78 dB (canal 2) |
Pression acoustique maximale (DHT<0.5%) | 125 dB-SPL |
Latence | canal 1: 1.6-6.25 ms (Dépend de la fréquence) canal 2: 1.6 ms |
Filtre Haut | commutable, +5 dB à 10 kHz |
Filtre coupe bas | commutable, @80 Hz, 18 dB/Oct. |
Impédance de sortie | 110 Ω |
Longueur de câble maximale | >200 m |
SCHOEPS RFI Shield | Oui, immunité maximale |
Alimentation, norme et gamme valide | AES42 / >6 V |
Consommation | 170 mA |
Sortie | XLR-3M, Numérique: AES42 Mode 1, 48 kHz Canal 1: SuperCMIT Canal 2: Signal du micro canon non traité |
Longueur | 280 mm |
Poids | 112 g |
Diamètre | 21 mm |
Finition de surface | Bleu |
Diagramme Polaire du SuperCMIT 2U (canal 1 sur Preset 1)
Diagramme Polaire du SuperCMIT 2 U (Canal 1 sur Preset 2)
Réponse en Fréquence des deux canaux dans l'axe
