HSC 4VXP/4VP with Ultrasone PRO 780i Headphones

Fully integrated headset

Features

  • fully integrated: microphone, gooseneck and headphones form a unit
  • highest intelligibility
  • special cardioid microphone with steep bass rolloff: 4VP for normal and 4VXP for drastic compensation of proximity effect
  • effective suppression of noise from surroundings
  • excellent protection from vocal “popping” sounds
  • the headphones are from the Ultrasone brand, model change within the Ultrasone family in 2022/23

Order number

  • No. 149002 HSC 4VP with Ultrasone PRO 780i Headphones
  • No. 149003 HSC 4VXP, with Ultrasone PRO 780i Headphones
  • No. 149004 HSC 4VP, with Edition Signature Studio Headphones

Description

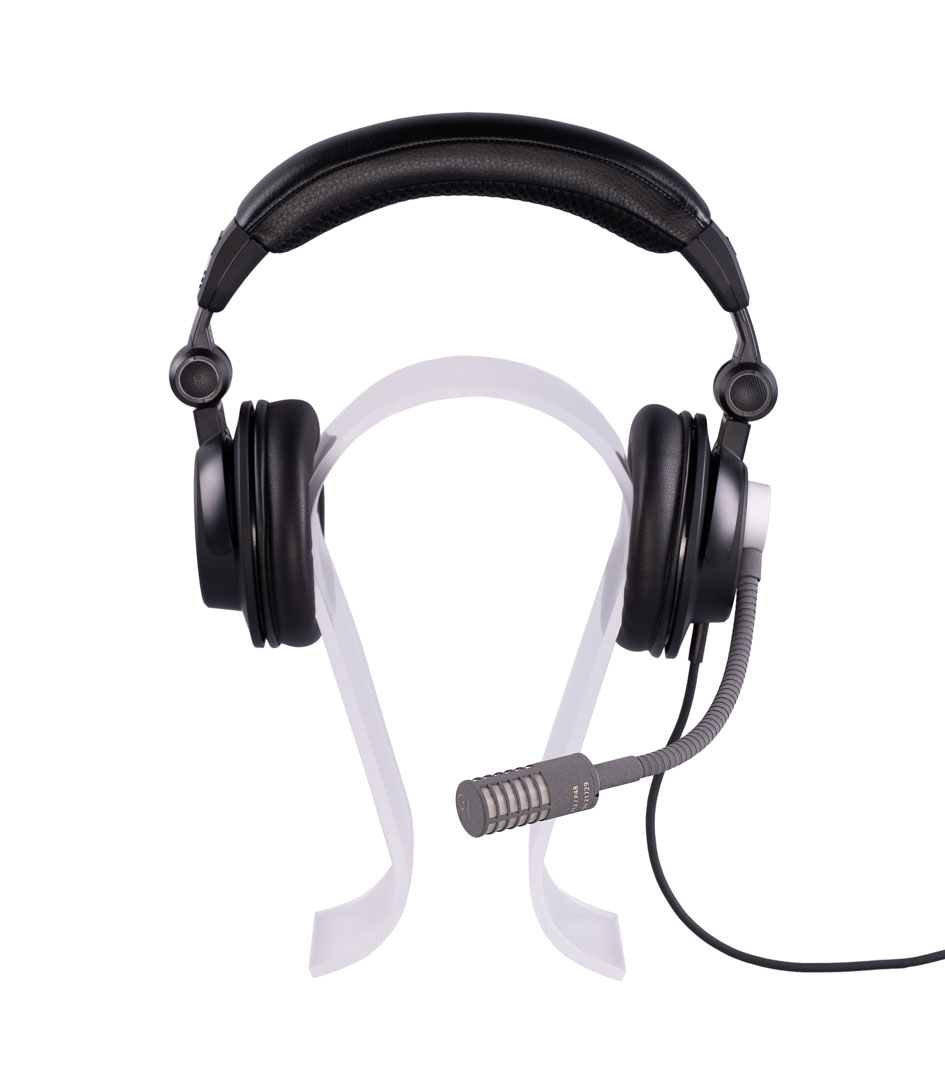

The HSC 4VP/4VXP is a completely integrated headset.

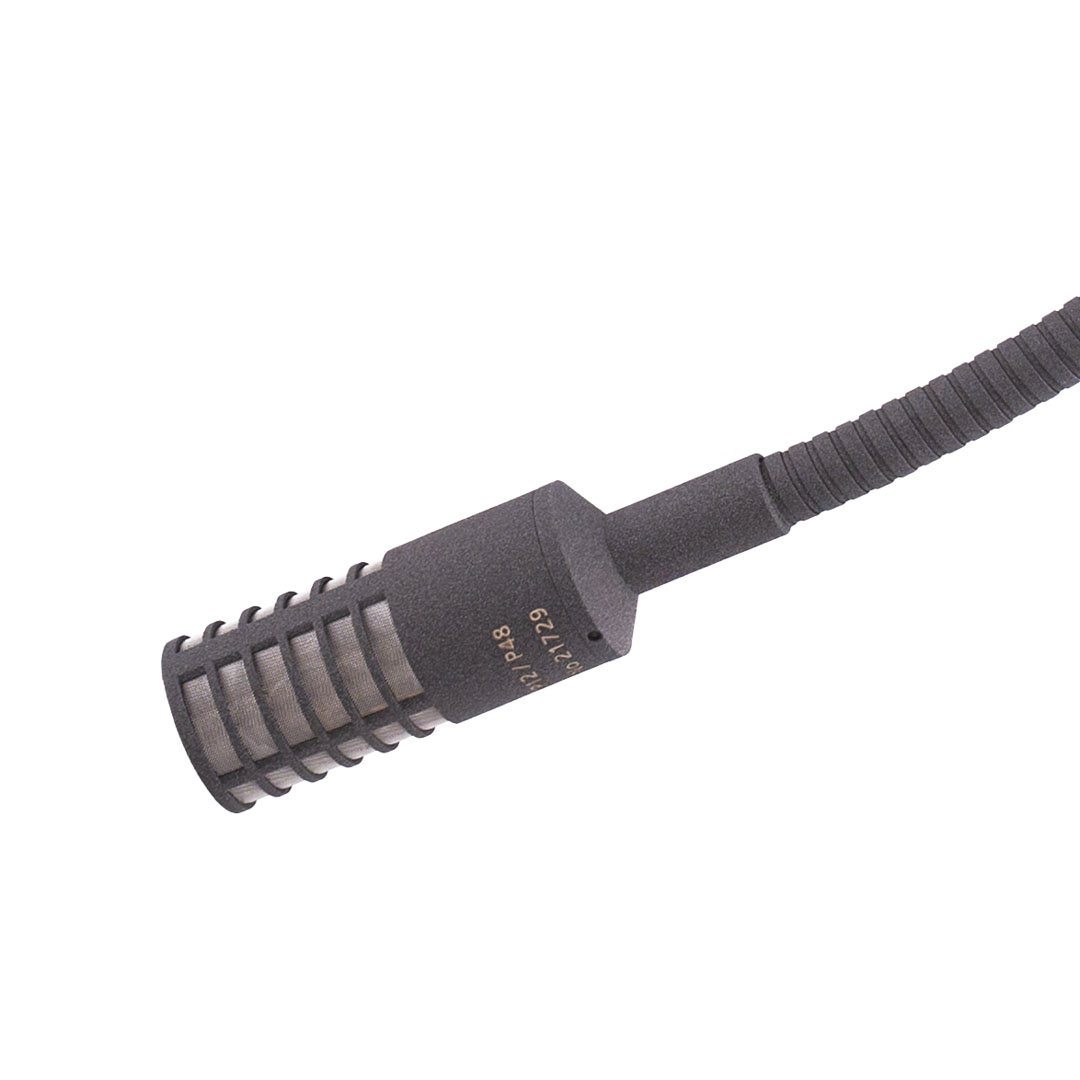

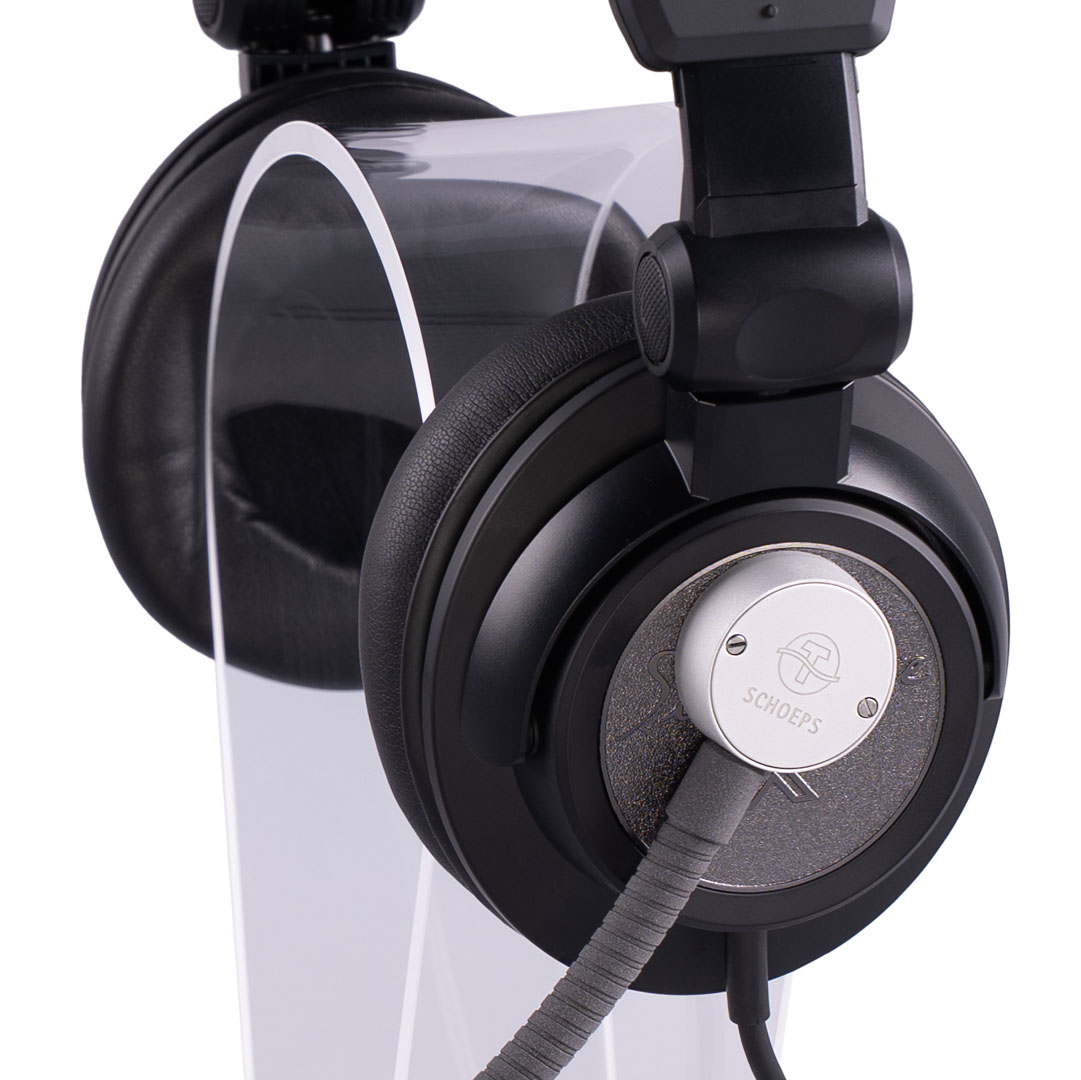

A compact microphone CCM 4VP or 4VXP (cardioids designed for close pickup of speech) is permanently connected with the Ultrasone headphone via a gooseneck element. A single cable connects to the headset. It is then split to a microphone output (XLR-3M) and the headphone input (1/4" stereo phone plug).

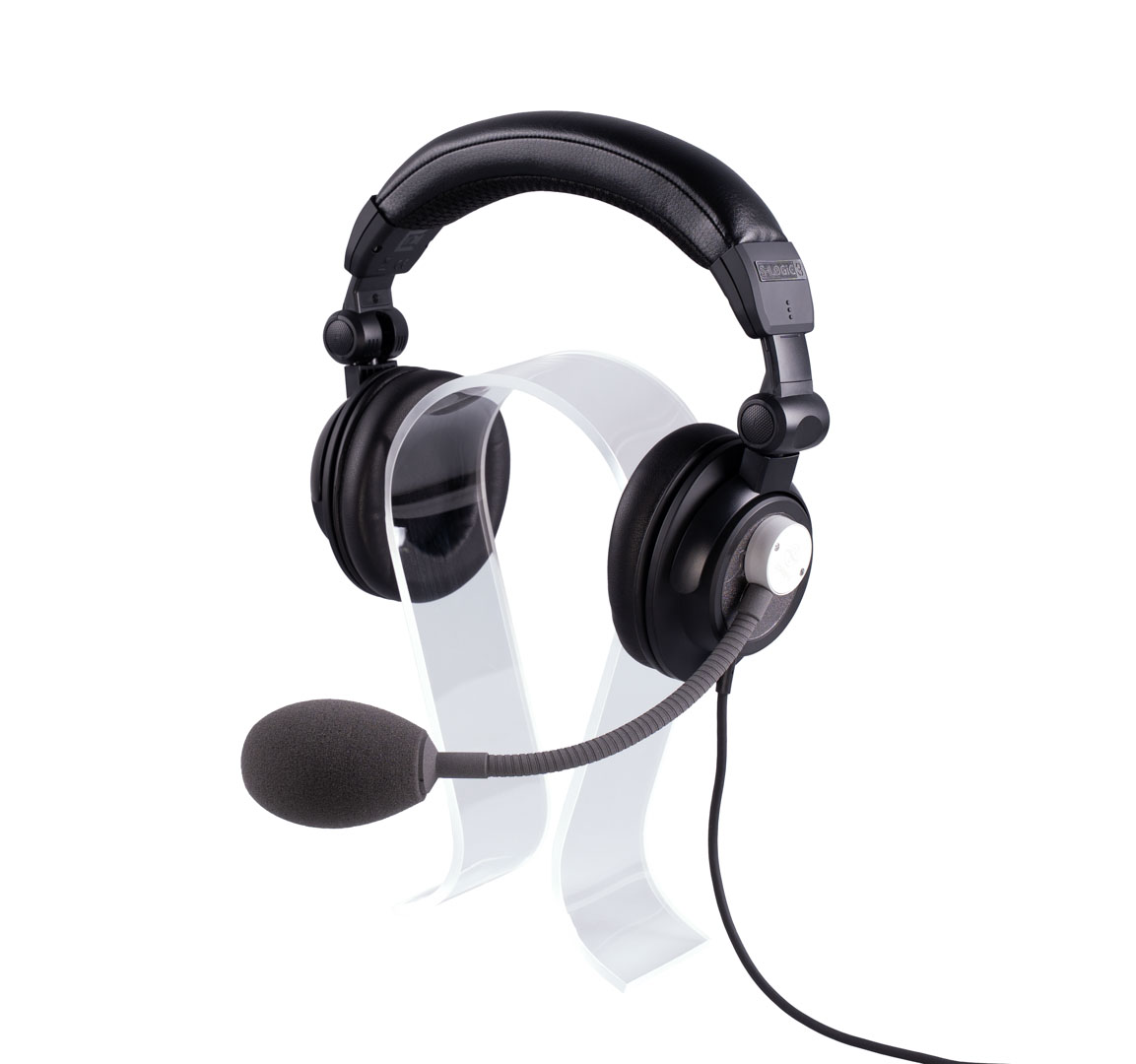

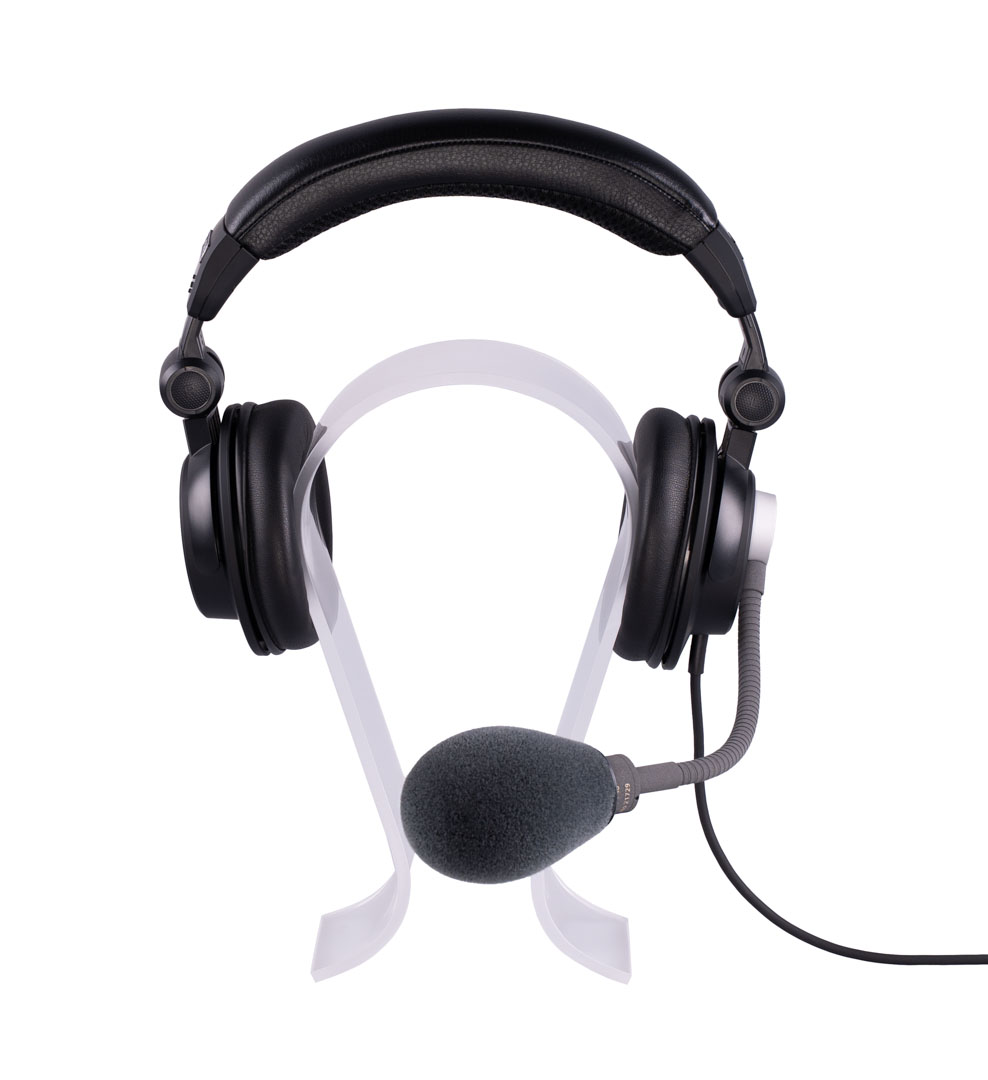

The headset comes with the B 5 pop screen. For even greater protection against wind and popping noise, the B 5 D pop screen can be used instead.

The CCM 4VP microphone offers a steep (4VXP:...

The HSC 4VP/4VXP is a completely integrated headset.

A compact microphone CCM 4VP or 4VXP (cardioids designed for close pickup of speech) is permanently connected with the Ultrasone headphone via a gooseneck element. A single cable connects to the headset. It is then split to a microphone output (XLR-3M) and the headphone input (1/4" stereo phone plug).

The headset comes with the B 5 pop screen. For even greater protection against wind and popping noise, the B 5 D pop screen can be used instead.

The CCM 4VP microphone offers a steep (4VXP: drastic) bass rolloff and a mild high-frequency boost. It is designed for lateral sound pickup at the shortest possible distance, i.e. directly in front of the speaker’s mouth. Proximity effect compensates for its low-frequency rolloff such that the microphone has an even frequency response for the person speaking, while background noise is greatly reduced.

The HSC was developed in cooperation with professionals who expect the highest sound quality and intelligibility.

moreless

Practice

The headset HSC 4VXP is widely used for the commentary in professional broadcast applications, mainly in sports and "audio description".

If the commentator sits in a closed cabin or in a similarly protected environment, a moderate low frequency attenuation is sufficient. Therefore, the version "4VP" is recommended in these cases.

Sample Player

Your browser is outdated. Please update to the latest version of your browser to use the sample player.

Graphics

Downloads

Close Pickup Capsules

P-Series capsules & Headset

Product sheets

de | en
Microphone Usage for Sports Broadcasting

Article on microphone techniques used in sports broadcasting

Helmut Wittek, 2016

Articles

en

Variants & Options

In place of the cardioid microphones, an omnidirectional microphone such as the CCM 2S can be used; the result would have a very natural sound color and no proximity effect. However, the sensitivity to off-axis noise would then be higher.

Ultrasone Signature Studio
Closed studio headphones

  • Principle: dynamic, closed
  • S-Logic® Plus Technology
  • MU Metal Shielding - ULE Technology
  • Impedance: 32 Ohm
  • Driver/diameter: titanium coated, 40 mm
  • Magnet: NdFeB
  • frequency range: 8 - 40.000 Hz
  • Sound pressure level (SPL): 98 dB
  • Weight (without cable):...

In place of the cardioid microphones, an omnidirectional microphone such as the CCM 2S can be used; the result would have a very natural sound color and no proximity effect. However, the sensitivity to off-axis noise would then be higher.

Ultrasone Signature Studio
Closed studio headphones

  • Principle: dynamic, closed
  • S-Logic® Plus Technology
  • MU Metal Shielding - ULE Technology
  • Impedance: 32 Ohm
  • Driver/diameter: titanium coated, 40 mm
  • Magnet: NdFeB
  • frequency range: 8 - 40.000 Hz
  • Sound pressure level (SPL): 98 dB
  • Weight (without cable): 290 g


Ultrasone PRO 780i
Headphones

  • Closed capsule design for optimal working conditions
  • Optimal room imaging with S-Logic® Plus
  • Excellent sound isolation and channel separation
  • Interchangeable ear cushions
  • High wearing comfort for long working sessions
  • Principle: Dynamic / closed
  • Conductor: 40mm, Mylar
  • magnet: NdFeB
  • Frequency range: 10 - 26,000 Hz
  • SPL: 96 dB
  • Weight: 295g
